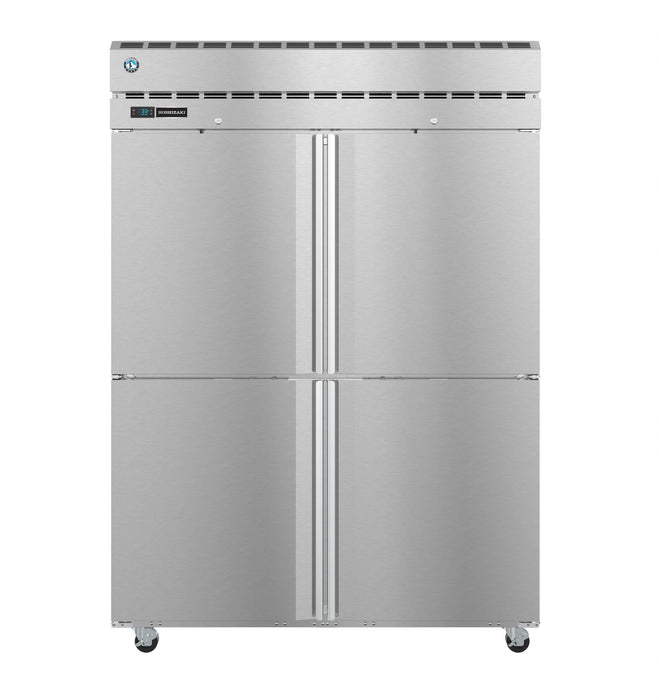

Hoshizaki Refrigerator PT2A-HS-HS, Two Section Pass Thru Upright, Half Stainless Doors with Lock

Save 45% Save 45%
Original price $32,720.00
Original price $32,720.00 - Original price $32,720.00
Original price $32,720.00
Current price $17,996.00
$17,996.00 - $17,996.00
Current price $17,996.00

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Contact Us

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

The PT2A-HS-HS Steelheart Series Pass Thru two section refrigerator with half stainless doors is a space saving workhorse. Solid state digital controller with temperature alarms and LED display (°F or °C). With a interior capacity of 52.5 cubic feet this efficient pass thru refrigerator and front air flow design is perfect for hot/tight kitchens. The PT2A-HS-HS is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The PT2A-HS-HS also includes Interior LED light bar is mounted horizontally on the ceiling, (6) 4″ stem casters (3 with brakes) are standard, plus a field reversible, spring assisted self closing doors with stay open feature (no kit req’d). Electrical consumption of 3.24 kWh/day at 5 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter. The unit is ETL Safety (US & C) Listed, ETL Sanitation and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty.

Specifications

  • Dimensions: 55″ W x 35.75″ D x 79.5″ H
  • Interior capacity of 52.5 cubic feet
  • Unique “ducted” air distribution system
  • Epoxy electrocoated (E-Coat) evaporator coil to help fight corrosion for extended life
  • Stainless steel exterior (front, sides, top) and a stainless steel interior
  • Field reversible, spring assisted self closing doors with stay open feature (no kit req’d)
  • One piece, full door length, extruded aluminum flush mount door handle
  • Lockable Half Stainless Doors
  • Insulated with 2 3/8″ CFC free, foamed in place polyurethane
  • Interior LED light bar is mounted horizontally on the ceiling
  • Solid state digital controller with temperature alarms and LED display (°F or °C)
  • R290 refrigerant
  • (6) 4″ Stem Casters (3 with brakes) are standard
  • Includes 6 epoxy coated wire coated wire shelves adjustable in 1″ increments on stainless steel supports
  • Optional kits: 6″ Legs, Epoxy or stainless steel shelves, Tray/pan slides, Foot pedal door opener, Additional air filter
  • Nominal Compres. of 1545 BTU/hr at 1/2 HP
  • 115v/60/1, 10 ft. cord and plug
  • Shipping Crate: 58″ L x 38.125″ D x 81″ H at 592 lbs
  • Top mounted energy efficient non-electric evaporation system
  • Six Years parts warranty, Five Years labor warranty, Seven Years compressor warranty

Additional information

Weight 592 lbs
Dimensions X X in
Warranty |Five Years: Labor warranty on entire machine.||Seven Years: Parts warranty on Compressor.
Electrical Specs: Electrical Connection: 5 - 15P NEMA, 115v/60/1, 10 ft. cord and plug, Energy Consumption: 3.24 kwh/day, Amperage: 5, Max Fuse/HACR Breaker: 15 A
Operating Limits: Ambient Temp Range: 45 - 100°F, Voltage Range: 104 - 126V, Control Setpoint Range: 31 - 52°F, Refrigerant: R290

Service Literature

Specification Sheet

Instruction Manual

Parts Manual

Service Manual

CAD/Revit Files

Warranty Statement

Sales Catalog
