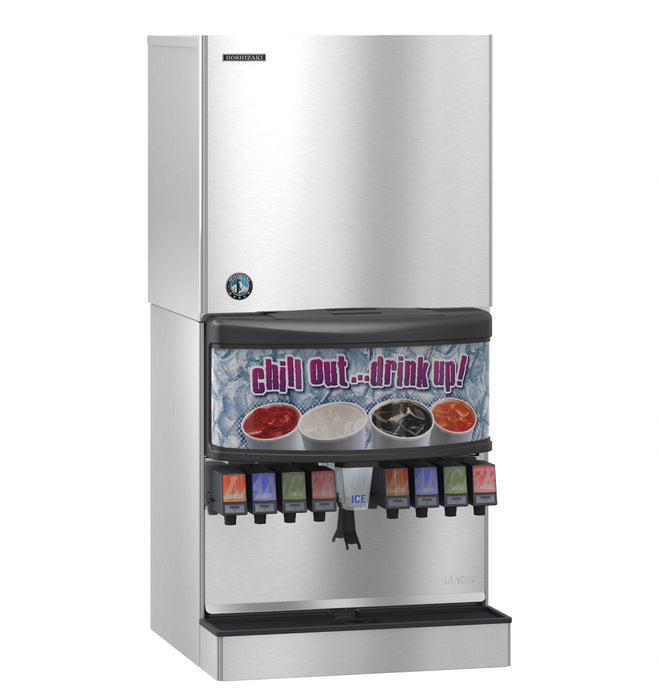

Hoshizaki KMD-860MRJZ Crescent Cuber Icemaker, Remote-cooled, stainless steel exterior.

Hoshizaki KMD-860MRJZ with URC-9FZ, Crescent Cuber Icemaker, Remote-cooled

by Hoshizaki
Save 45% Save 45%
$12,940.00
$12,940.00 - $12,940.00
$12,940.00
$7,117.00
$7,117.00 - $7,117.00
$7,117.00

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Contact Us

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

The KMD-860MRJZ is capable of producing approximately 967 lbs of crescent cubed ice. The energy efficient KMEdge design incorporates a dual-sided stainless steel evaporator. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Remote-cooled with URC-9FZ icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-860MRJZ requires a Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. KMD-868MRJ.

Specifications

  • Dimensions: 30″ W x 24-5/8″ D x 28″ H
  • Up to 967 lbs of ice produced per 24 hours
  • Mount 2 units side-by-side for 2x the ice production
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: B-250, BD-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
  • EverCheck™ alert system
  • CycleSaver™ design
  • R-404A refrigerant (5 lbs. 15.9 oz. / 2719 g)
  • Heat Rejection:13000 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 187 – 253V
  • 12.5 amps (20 Amp Max fuse)
  • 5.05 kwh/100 lbs.@ 90/70
  • Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.

Additional information

Weight 256 lbs
Dimensions X X in
Warranty |Three Years: Parts & Labor warranty on entire machine.||Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Electrical Specs: Single phase, 208-230v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 12.5, Max Fuse/HACR Breaker: 20 A
Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption: 5.05 kWh per 100 lbs @ 90/70, 18 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 187 - 253V, Heat Rejection: 13000 BTU/hr, Refrigerant Charge: R-404A, (5 lbs. 15.9 oz. / 2719 g)

Service Literature

Specification Sheet

Instruction Manual

CAD/Revit Files

Warranty Statement

Sales Catalog

Video
