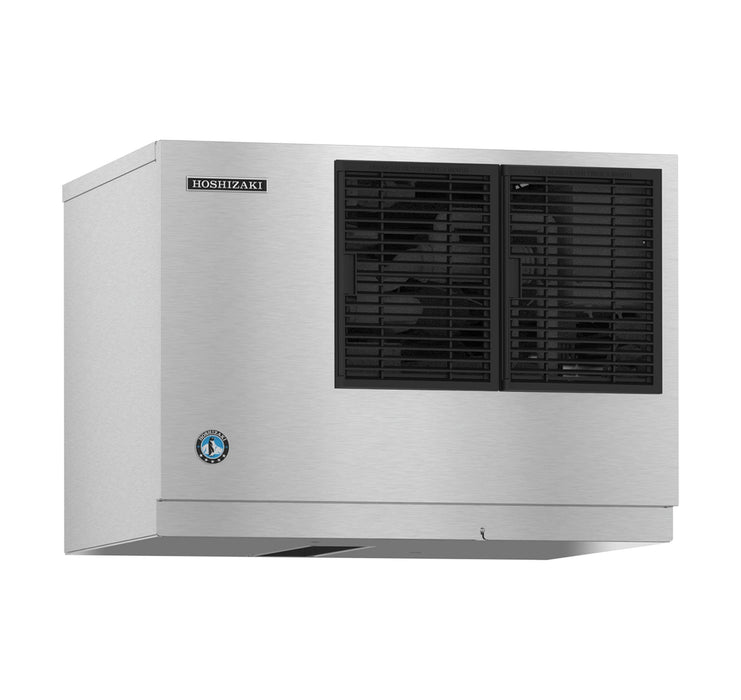

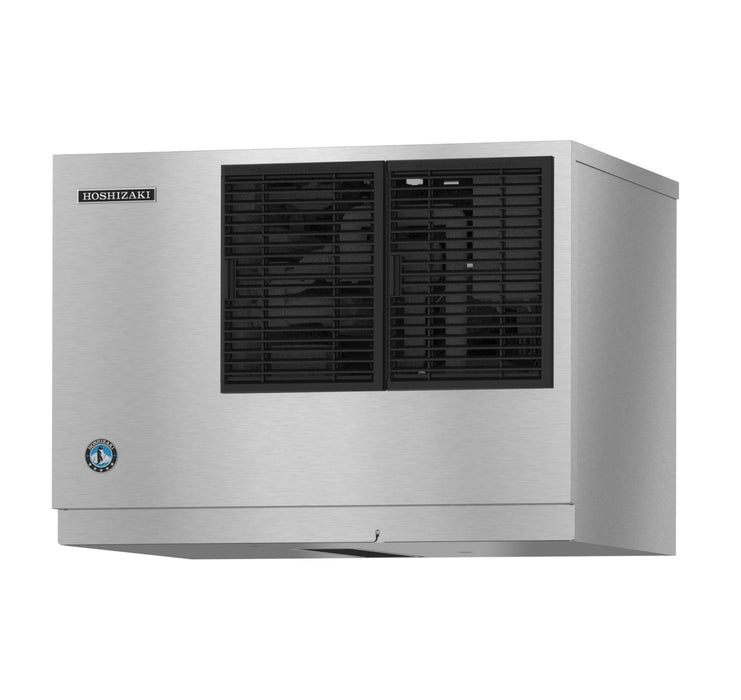

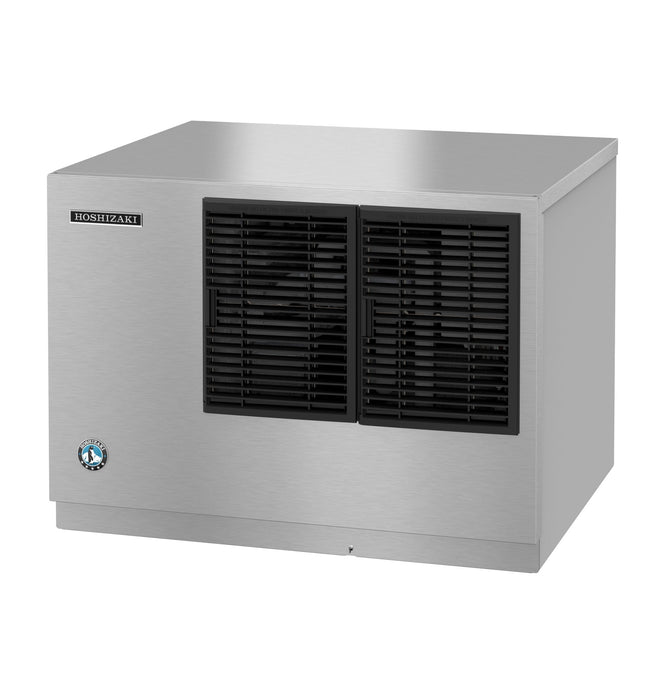

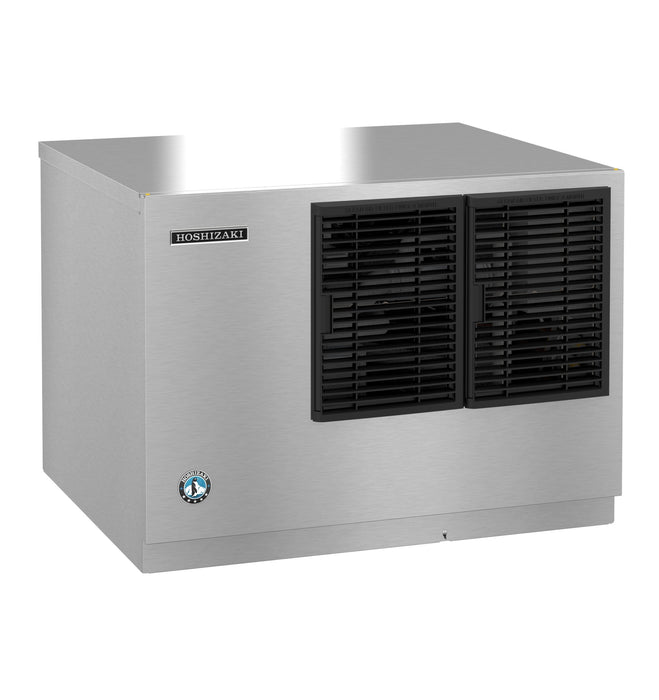

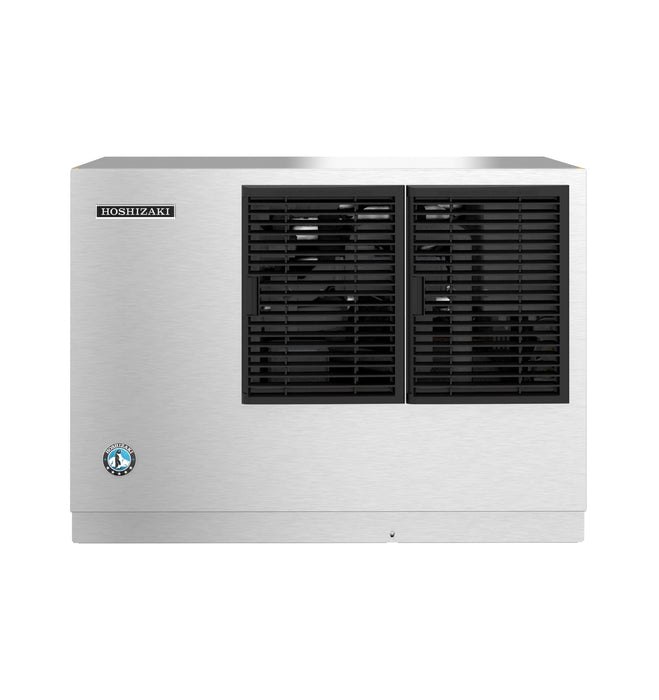

Hoshizaki KMD-505MAJ, Crescent Cuber Icemaker, Air-cooled

Name: Hoshizaki KMD-505MAJ, Crescent Cuber Icemaker, Air-cooled
Brand: Hoshizaki
SKU: KMD-505MAJ
Price: 4691.5 USD
Availability: InStock

by Hoshizaki

Save 45%

$8,530.00

$8,530.00 - $8,530.00

$8,530.00

$4,691.50

$4,691.50 - $4,691.50

$4,691.50

Quantity

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

The KMD-505MAJ is capable of producing approximately 500 lbs of crescent cubed ice. Hoshizaki’s efficient stainless steel evaporators create its unique crescent shaped ice cubes. Its ice on beverage design makes it ideal for use in busy self-serve areas, fast food restaurants, employee break rooms and more. This Air-cooled, Modular icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KMD-505MAJ requires a 115v/60/1 electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-500, BD-500, B-700, B-800, B-900, B-1150, B-1300, DB-200H. Please consult the Specification Sheet for additional details.

Specifications

Dimensions: 30″ W x 24″ D x 22″ H
Up to 500 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior

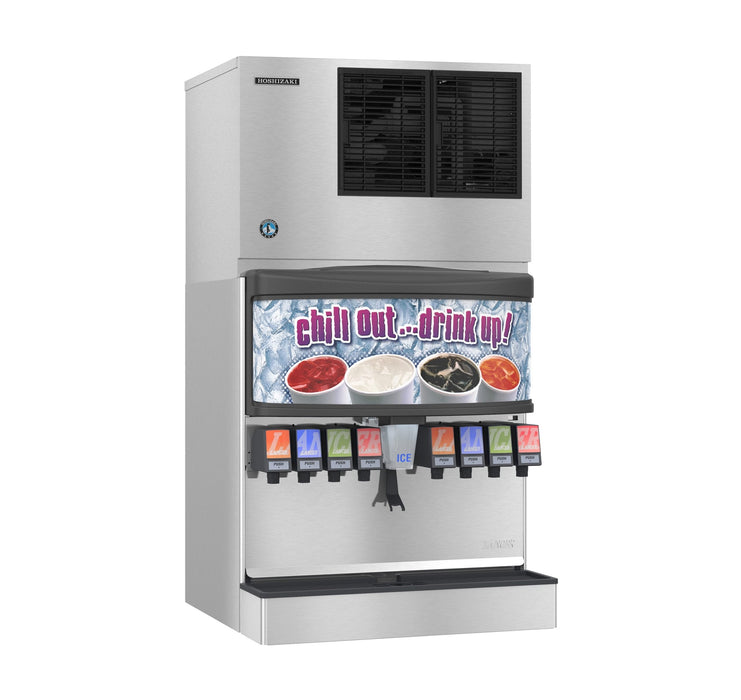

Compatible bins & dispensers, sold separately: B-250, B-500, BD-500, B-700, B-800, B-900, B-1150, B-1300, DB-200H
EverCheck™ alert system
CycleSaver™ design
Simple one-hour cleaning process
R-404A refrigerant (1 lbs. 8.7 oz. / 700 g)
Heat Rejection:6000 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
10.7 amps (20 Amp Max fuse)
5.55 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.

Additional information

Weight	200 lbs
Dimensions	X X in
Warranty	\|Three Years: Parts & Labor warranty on entire machine.\|\|Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Electrical Specs:	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 14.3, Max Fuse/HACR Breaker: 20 A
Plumbing Specs:	1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption:	4.75 kWh per 100 lbs @ 90/70, 22 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:	Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 9400 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 12.1 oz. / 1250 g)
