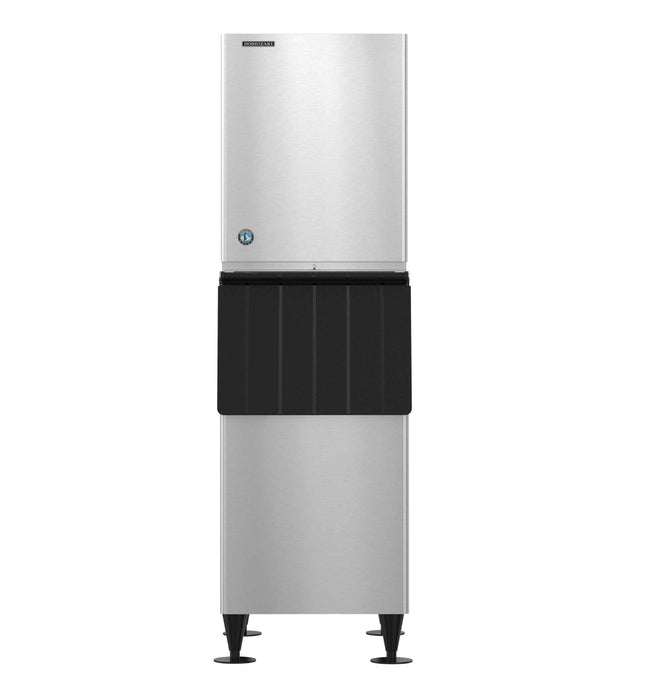

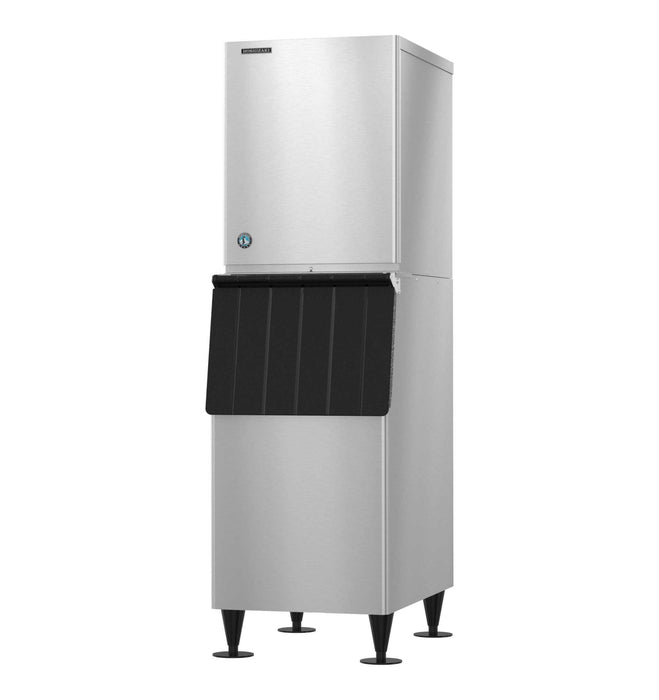

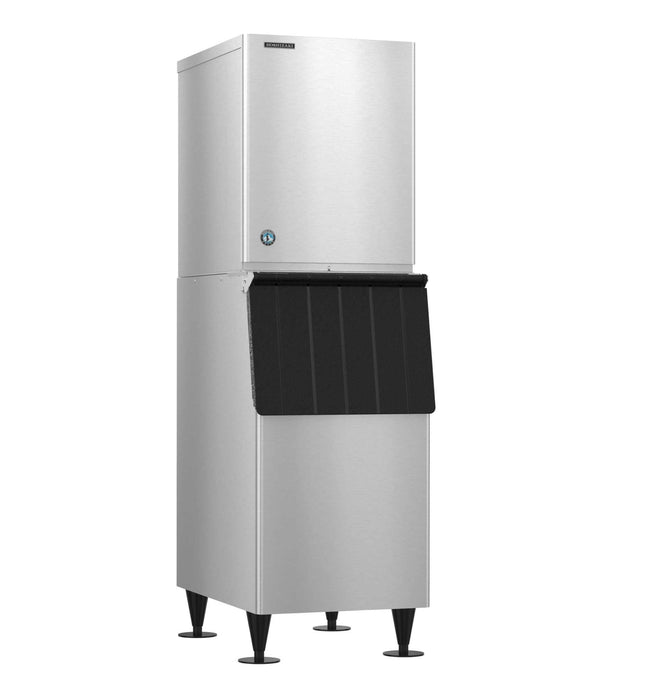

Hoshizaki KM-660MRJZ crescent cuber icemaker, stainless steel exterior, energy efficient, remote-cooled.

Hoshizaki KM-660MRJZ with URC-5FZ, Crescent Cuber Icemaker, Remote-cooled

Name: Hoshizaki KM-660MRJZ with URC-5FZ, Crescent Cuber Icemaker, Remote-cooled
Brand: Hoshizaki
SKU: KM-660MRJZ
Price: 5274.5 USD
Availability: InStock

by Hoshizaki

Save 45%

$9,590.00

$9,590.00 - $9,590.00

$9,590.00

$5,274.50

$5,274.50 - $5,274.50

$5,274.50

Quantity

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

The KM-660MRJZ is capable of producing approximately 642 lbs of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-5FZ icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-660MRJZ requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details. KMD-66066MRJ.

Specifications

Dimensions: 22″ W x 27-3/8″ D x 28″ H
Up to 642 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
EverCheck™ alert system
CycleSaver™ design
R-404A refrigerant (2 lbs. 4.7 oz / 1012 g)
Heat Rejection:8100 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
16.1 amps (20 Amp Max fuse)
5.6 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
ENERGY STAR® qualified
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.

Additional information

Weight	180 lbs
Dimensions	X X in
Warranty	\|Three Years: Parts & Labor warranty on entire machine.\|\|Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Electrical Specs:	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 16.1, Max Fuse/HACR Breaker: 20 A
Plumbing Specs:	1/2" FPT Inlet, Minimum 1/2" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption:	5.6 kWh per 100 lbs @ 90/70, 14.7 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:	Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 8100 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 4.7 oz / 1012 g)
