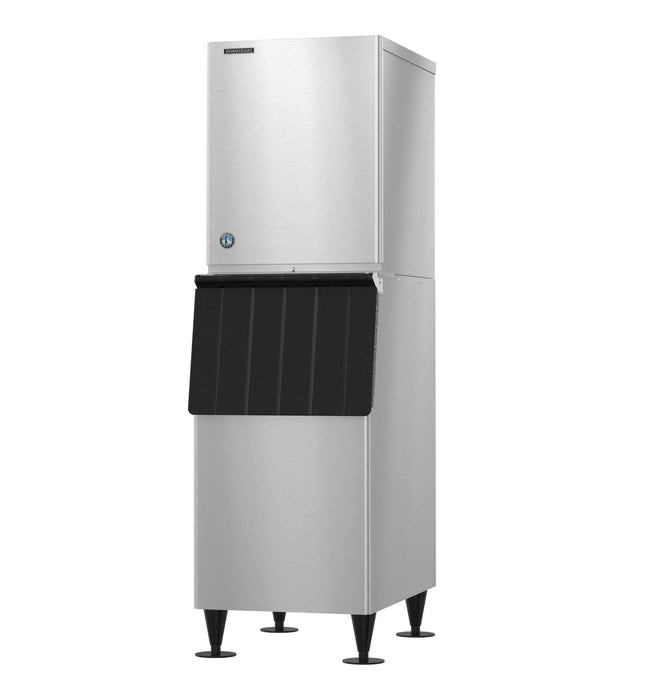

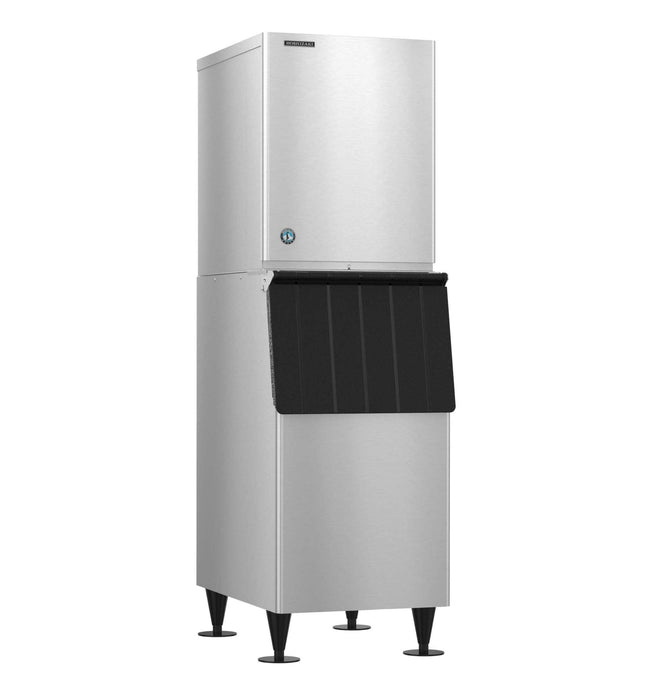

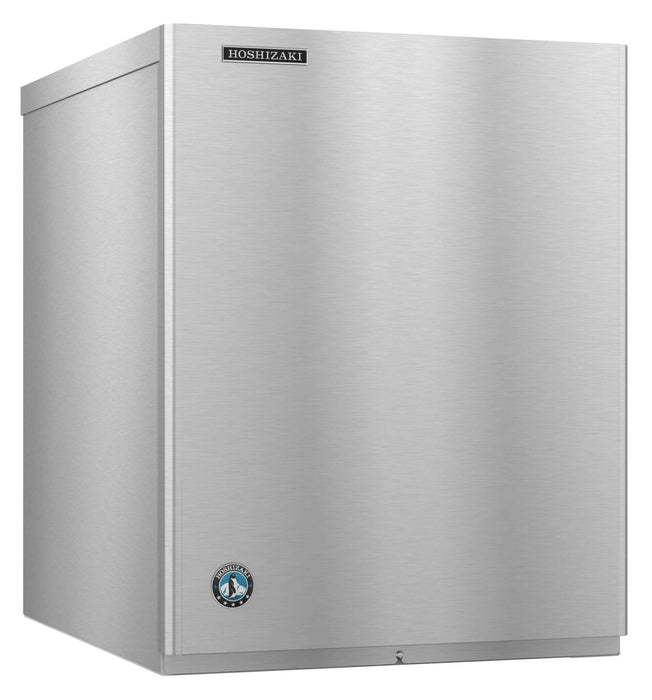

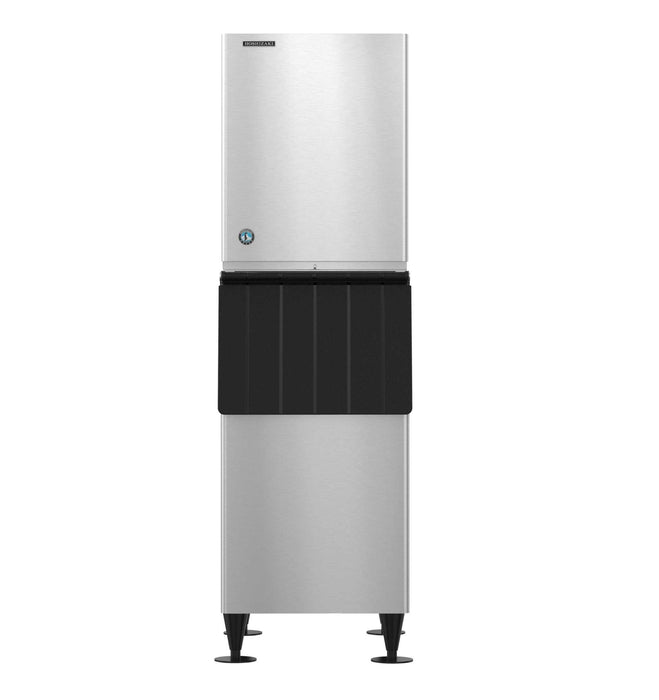

Hoshizaki KM-520MRJZ crescent cuber icemaker, stainless steel exterior, remote-cooled, commercial use.

Hoshizaki KM-520MRJZ with URC-5FZ, Crescent Cuber Icemaker, Remote-cooled

Name: Hoshizaki KM-520MRJZ with URC-5FZ, Crescent Cuber Icemaker, Remote-cooled
Brand: Hoshizaki
SKU: KM-520MRJZ
Price: 4614.5 USD
Availability: InStock

by Hoshizaki

Save 45%

$8,390.00

$8,390.00 - $8,390.00

$8,390.00

$4,614.50

$4,614.50 - $4,614.50

$4,614.50

Quantity

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

The Hoshizaki KM-520MRJZ with URC-5FZ is a highly efficient remote-cooled crescent cuber icemaker, expertly designed to cater to the rigorous demands of commercial environments such as restaurants, bars, and hotels. This unit produces up to 520 lbs of crescent ice daily, ensuring a consistent supply for various beverage applications. The remote cooling system enhances energy efficiency while minimizing noise levels, creating a comfortable atmosphere for both customers and staff. With a sturdy stainless steel exterior, this icemaker is built for durability and longevity, able to withstand the rigors of daily use. Additionally, it features an automatic self-cleaning cycle, which promotes optimal hygiene and reduces maintenance needs, making it a practical choice for any establishment that values quality and reliability in ice production.

Specifications

Dimensions: 48″ W x 27-3/8″ D x 36-7/16″ H
Up to 2617 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
EverCheck™ alert system
CycleSaver™ design
R-404A refrigerant (19 lbs. 13.5 oz. / 9000 g)
Heat Rejection:36000 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 187 – 253V
20.6 amps (30 Amp Max fuse)
3.61 kwh/100 lbs.@ 90/70
Three phase, 208-230v/60/3 4 wire, including ground. Must be hardwired at site, no cord/plug included
ENERGY STAR® qualified
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.

Additional information

Weight	175 lbs
Dimensions	X X in
Warranty	\|Three Years: Parts & Labor warranty on entire machine.\|\|Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Electrical Specs:	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 12.05, Max Fuse/HACR Breaker: 20 A
Plumbing Specs:	1/2" FPT Inlet, Minimum 1/2" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption:	4.8 kWh per 100 lbs @ 90/70, 13.6 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:	Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 6200 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 4.7oz. / 1012 g)
