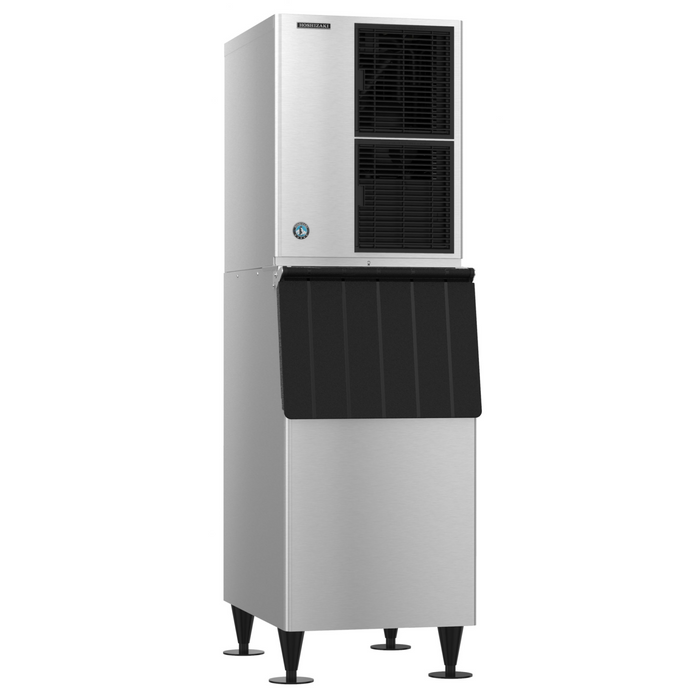

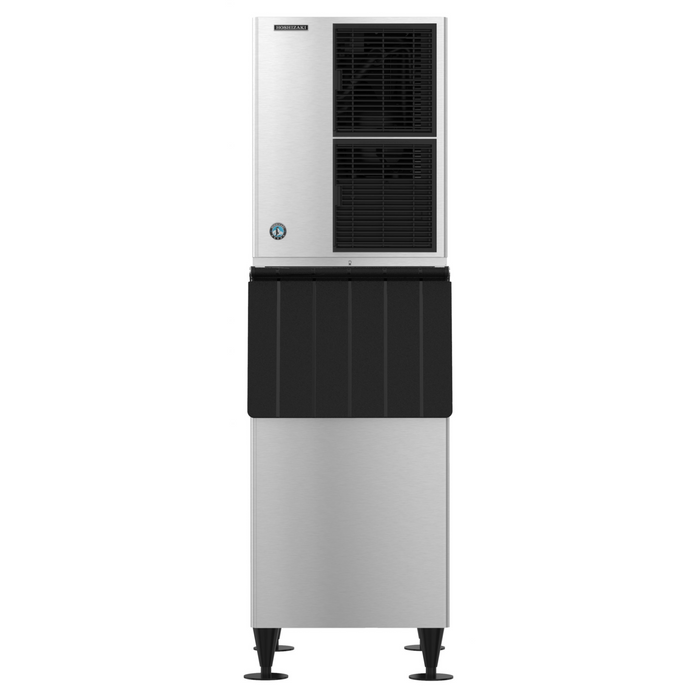

Hoshizaki KM-520MAJ-E Crescent Cuber Icemaker, stainless steel, air-cooled, 50Hz.

Hoshizaki KM-520MAJ-E, Crescent Cuber Icemaker, Air-cooled, 50Hz Electrical

Name: Hoshizaki KM-520MAJ-E, Crescent Cuber Icemaker, Air-cooled, 50Hz Electrical
Brand: Hoshizaki
SKU: KM-520MAJ-E
Price: 4829.0 USD
Availability: InStock

by Hoshizaki

Save 45%

$8,780.00

$8,780.00 - $8,780.00

$8,780.00

$4,829.00

$4,829.00 - $4,829.00

$4,829.00

Quantity

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

The KM-520MAJ-E is capable of producing approximately 238 kg of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Slim Line Modular, 50Hz Electrical icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-520MAJ-E has a 50Hz electrical, 220-240v/50/1, 3000 mm long cord with Type G plug. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B. Please consult the Specification Sheet for additional details. KMD-52052MAJ.

Specifications

Dimensions: 559 mm W x 695 mm D x 711 mm H
Up to 238 kg of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior

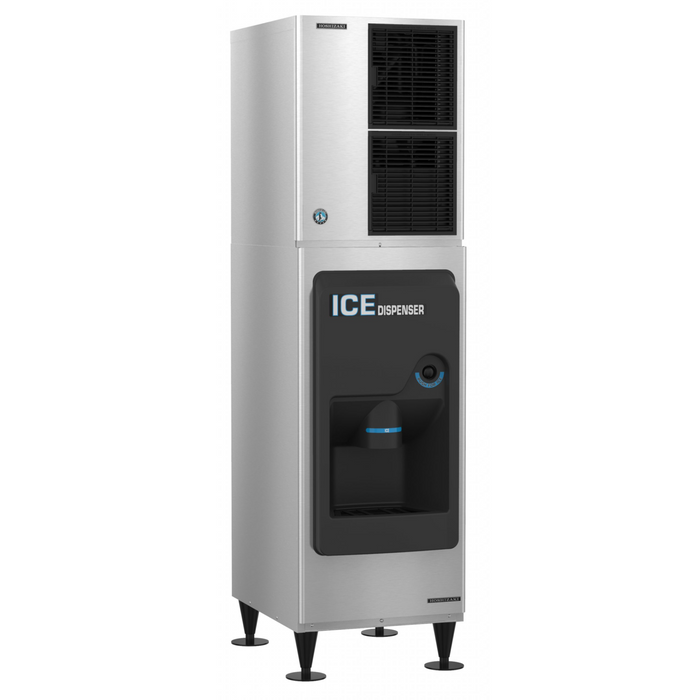

Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, DB-130H, DB-200H, DM-200B
EverCheck™ alert system
CycleSaver™ design
R-404A refrigerant (500 g)
Heat Rejection:7300 BTU/hr
Ambient temperature range: 7 – 38°C
Water temperature range: 7 – 32°C
Water pressure: 0.7 – 8 kg/cm2
Voltage range: 198 – 254V
8.4 amps (15 Amp Max fuse)
6.52 kwh/100 lbs.@ 90/70
50Hz electrical, 220-240v/50/1, 3000 mm long cord with Type G plug
Clean ice and easy maintenance lead to longer unit life span
Warranty: Contact factory for warranty information.
“-E”: 50Hz Electrical Model

Additional information

Weight	185 lbs
Dimensions	X X in
Warranty	\|Warranty: Contact factory for warranty information.\|\|
Electrical Specs:	50Hz electrical, 220-240v/50/1, 3000 mm long cord with Type G plug, Amperage: 8.4, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:	12.7 mm FPT Inlet, Minimum 6 mm Nominal OD Copper Water Tubing or Equivalent, 19.05 mm FPT Outlet, Minimum 18 mm Nominal OD Hard Pipe or Equivalent
Utility Consumption:	6.52 kWh per 100 lbs @ 90/70, 108 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:	Ambient Temp Range: 7 - 38°C, Water Temp Range: 7 - 32°C, Water Pressure: 0.7 - 8 kg/cm2, Voltage Range: 198 - 254V, Heat Rejection: 7300 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 1.6 oz. / 500 g)
