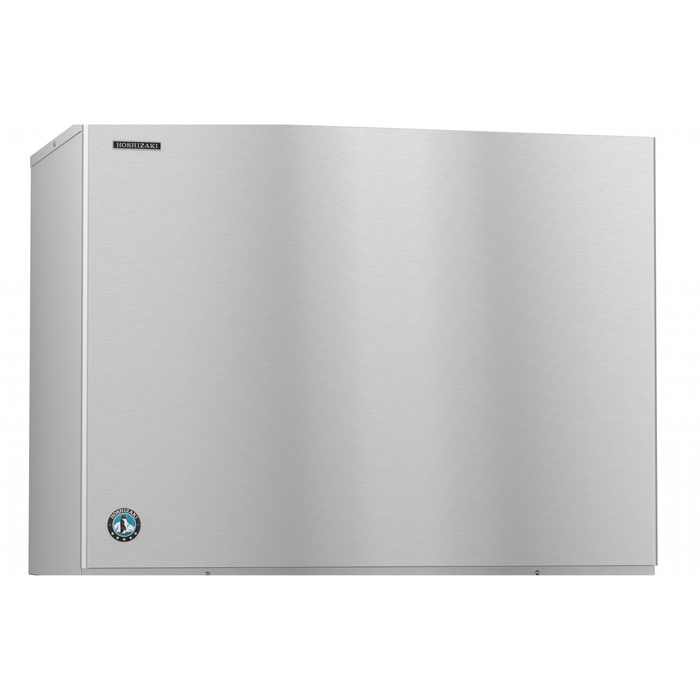

Hoshizaki KM-2200SRJZ3 Crescent Cuber Icemaker, remote-cooled stainless steel unit, ENERGY STAR® qualified.

Hoshizaki KM-2200SRJZ3 with URC-22FZ, Crescent Cuber Icemaker, Remote-cooled

by Hoshizaki
Save 45% Save 45%
$25,680.00
$25,680.00 - $25,680.00
$25,680.00
$14,124.00
$14,124.00 - $14,124.00
$14,124.00

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Contact Us

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

The KM-2200SRJZ3 is capable of producing approximately 2206 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-22FZ icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-2200SRJZ3 requires a Three phase, 208-230v/60/3 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details. KMD-22022SRJ.

Specifications

  • Dimensions: 48″ W x 27-3/8″ D x 36- 7/16″ H
  • Up to 2206 lbs of ice produced per 24 hours
  • Stack 2 units for 2x the ice production
  • Produces crescent shaped ice cubes
  • Durable stainless steel exterior

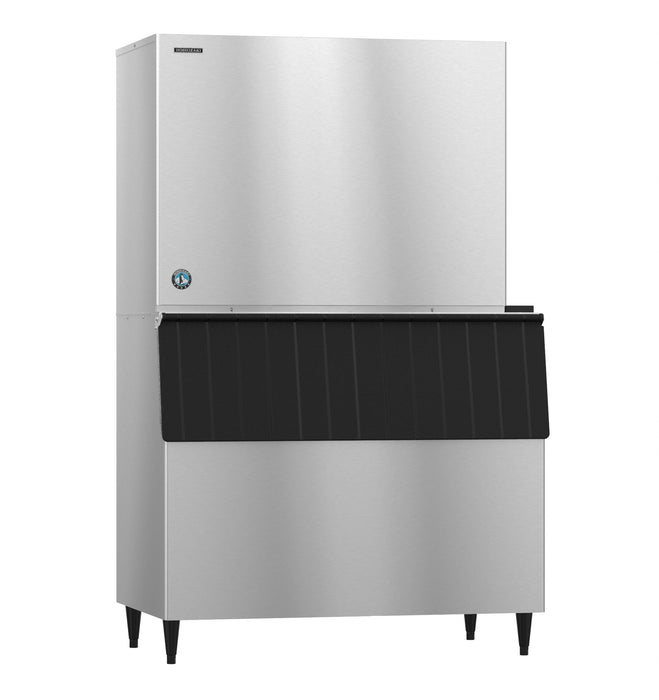

  • Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
  • EverCheck™ alert system
  • CycleSaver™ design
  • R-404A refrigerant (8 lbs. 6 oz. / 3800 g)
  • Heat Rejection:26700 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 187 – 253V
  • 15.9 amps (20 Amp Max fuse)
  • 3.75 kwh/100 lbs.@ 90/70
  • Three phase, 208-230v/60/3 4 wire, including ground. Must be hardwired at site, no cord/plug included
  • ENERGY STAR® qualified
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts & Labor warranty on evaporator.

Additional information

Weight 400 lbs
Dimensions X X in
Warranty |Three Years: Parts & Labor warranty on entire machine.||Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Electrical Specs: Three phase, 208-230v/60/3 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 15.9, Max Fuse/HACR Breaker: 20 A
Plumbing Specs: 1/2" FPT Inlet, Minimum 3/8" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Drain Hard Pipe or Equivalent
Utility Consumption: 3.75 kWh per 100 lbs @ 90/70, 15 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 187 - 253V, Heat Rejection: 26700 BTU/hr, Refrigerant Charge: R-404A, (8 lbs. 6 oz. / 3800 g)

Service Literature

Specification Sheet

Instruction Manual

CAD/Revit Files

Warranty Statement

Sales Catalog

Video
