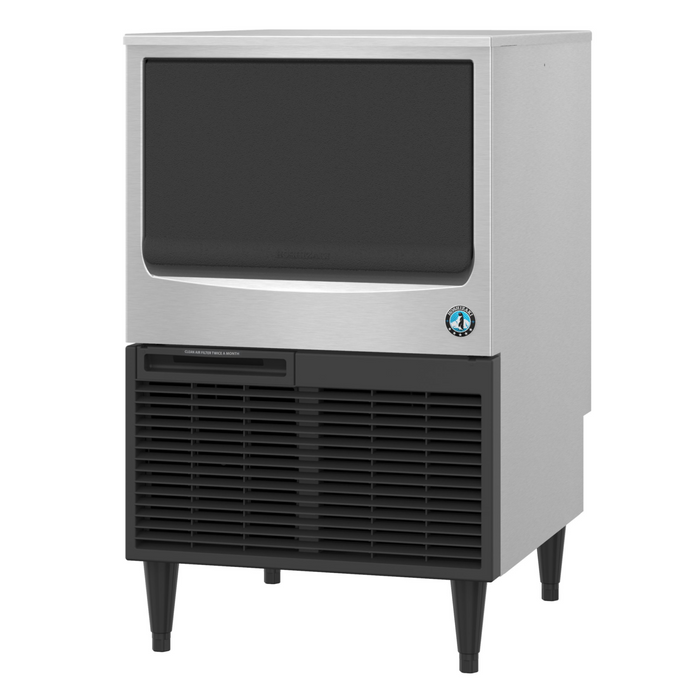

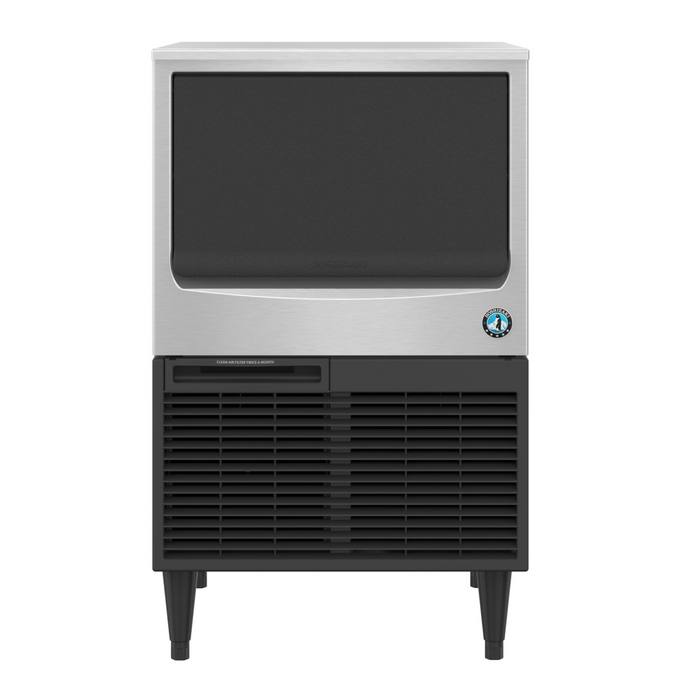

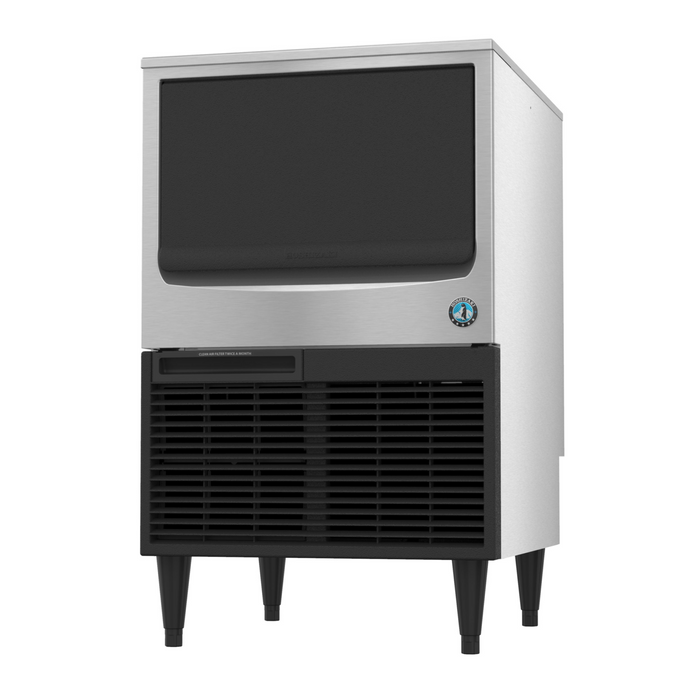

Hoshizaki KM-161BAJ Crescent Cuber Icemaker with built-in storage bin and air-cooled system.

Hoshizaki KM-161BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin

Name: Hoshizaki KM-161BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
Brand: Hoshizaki
SKU: KM-161BAJ
Price: 3443.0 USD
Availability: InStock

by Hoshizaki

Save 45%

$6,260.00

$6,260.00 - $6,260.00

$6,260.00

$3,443.00

$3,443.00 - $3,443.00

$3,443.00

Quantity

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

The KM-161BAJ is capable of producing approximately 163 lbs of crescent cubed ice. This Undercounter Air-cooled, Built in Storage Bin icemaker stores up to 78 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-161BAJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice. KMD-16116BAJ.

Specifications

Dimensions: 23-3/4″ W x 28″ D x 39″ H
Up to 163 lbs of ice produced per 24 hours
Up to 78 lbs of built-in storage capacity (2.6ft3)
Produces crescent shaped ice cubes
Slide in door with durable stainless steel exterior
Front in, front out airflow
EverCheck™ alert system
CycleSaver™ design
Slide in door, ice bin opening is ADA compliant
R-134a refrigerant (7.4 oz. / 210 g)
Heat Rejection:3050 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
7.1 amps (15 Amp Max fuse)
8.6 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.

Additional information

Weight	160 lbs
Dimensions	X X in
Warranty	\|Three Years: Parts & Labor warranty on entire machine.\|\|Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Electrical Specs:	Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug, Amperage: 7.1, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:	1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Drain Hard Pipe or Equivalent
Utility Consumption:	8.6 kWh per 100 lbs @ 90/70, 23 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:	Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 3050 BTU/hr, Refrigerant Charge: R-134a, (7.4 oz. / 210 g)
