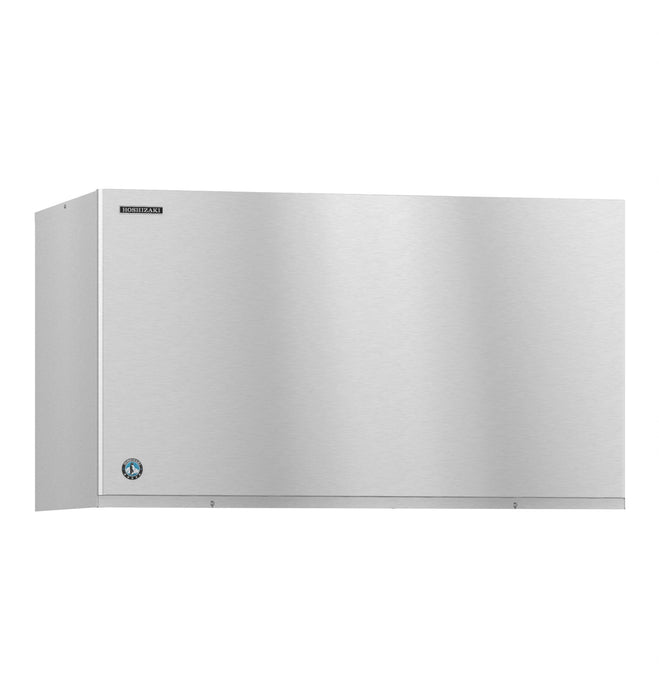

Hoshizaki KM-1301SRJZ3 Icemaker, remote-cooled, crescent cuber, stainless steel.

Hoshizaki KM-1301SRJZ3 with URC-14FZ, Crescent Cuber Icemaker, Remote-cooled

Name: Hoshizaki KM-1301SRJZ3 with URC-14FZ, Crescent Cuber Icemaker, Remote-cooled
Brand: Hoshizaki
SKU: KM-1301SRJZ3
Price: 9135.5 USD
Availability: InStock

by Hoshizaki

Save 45%

$16,610.00

$16,610.00 - $16,610.00

$16,610.00

$9,135.50

$9,135.50 - $9,135.50

$9,135.50

Quantity

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

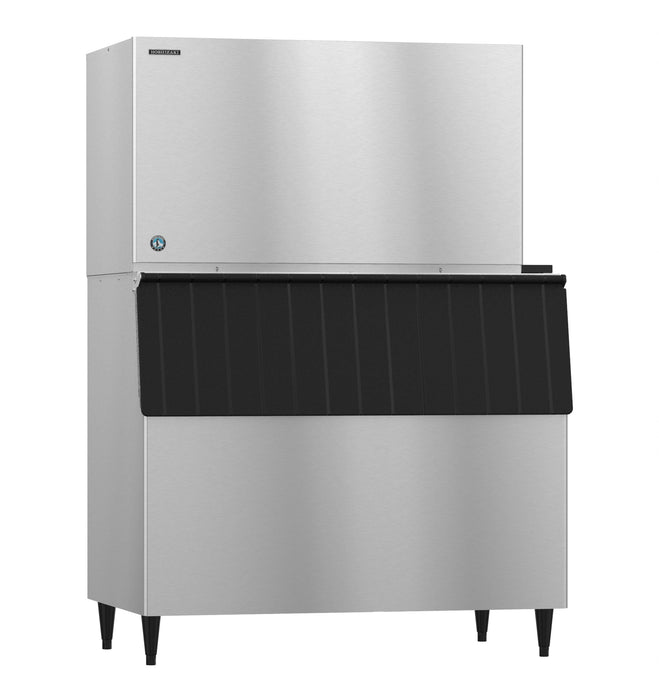

The KM-1301SRJZ3 is capable of producing approximately 1433 lbs of crescent cubed ice, Stack 2 units for 2x the ice production in the same floor space! Our efficient double-sided stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Remote-cooled with URC-14FZ icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1301SRJZ3 requires a Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details. KMD-13013SRJ.

Specifications

Dimensions: 48″ W x 27-3/8″ D x 27-3/8″ H
Up to 1433 lbs of ice produced per 24 hours
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Durable and tamper proof stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
EverCheck™ alert system
CycleSaver™ design
R-404A refrigerant (5 lbs. 15.2 oz. / 2700 g)
Heat Rejection:18800 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 187 – 253V
12.8 amps (20 Amp Max fuse)
3.83 kwh/100 lbs.@ 90/70
Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included
ENERGY STAR® qualified
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.

Additional information

Weight	335 lbs
Dimensions	X X in
Warranty	\|Three Years: Parts & Labor warranty on entire machine.\|\|Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Electrical Specs:	Three phase, 208-230v/60/3, 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 12.8, Max Fuse/HACR Breaker: 20 A
Plumbing Specs:	1/2" FPT Inlet, Minimum 3/8" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption:	3.83 kWh per 100 lbs @ 90/70, 14 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:	Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 187 - 253V, Heat Rejection: 18800 BTU/hr, Refrigerant Charge: R-404A, (5 lbs. 15.2 oz. / 2700 g)
