Hoshizaki KM-1301SAJ-E crescent cuber icemaker, air-cooled, stainless steel, energy-efficient with EverCheck alert system.

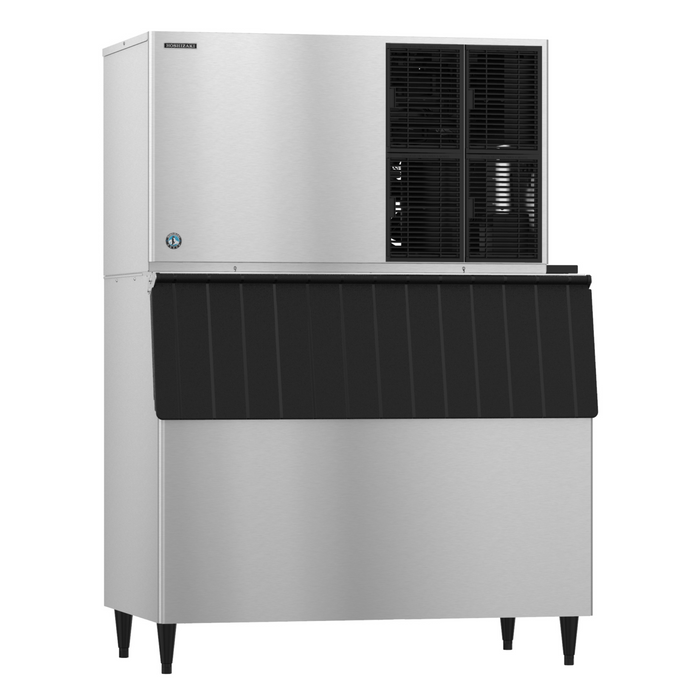

Hoshizaki KM-1301SAJ-E, Crescent Cuber Icemaker, Air-cooled, 50Hz Electrical

Name: Hoshizaki KM-1301SAJ-E, Crescent Cuber Icemaker, Air-cooled, 50Hz Electrical
Brand: Hoshizaki
SKU: KM-1301SAJ-E
Price: 9636.0 USD
Availability: InStock

by Hoshizaki

Save 45%

$17,520.00

$17,520.00 - $17,520.00

$17,520.00

$9,636.00

$9,636.00 - $9,636.00

$9,636.00

Quantity

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

The KM-1301SAJ-E is capable of producing approximately 624 kg of crescent cubed ice. Our efficient double-sided KMEdge stainless steel evaporators create our unique crescent shaped ice cubes. It is the purest and hardest ice on the market and is a perfect fit for a wide range of applications. This Air-cooled, Stackable, 50Hz Electrical icemaker features a CycleSaver™ design and includes the EverCheck™ alert system making the unit energy efficient and simple to maintain. The KM-1301SAJ-E has a 50Hz electrical, 220-240v/50/1 3 wire, including ground. Must be hardwired at site, no cord/plug included. Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. KMOD-13013SAJ.

Specifications

Dimensions: 1219mm W x 695mm D x 695mm H
Up to 624 kg of ice produced per 24 hours
Stack 2 units for 2x the ice production
Produces crescent shaped ice cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-800, B-900, B-1150, B-1300, B-1500, B-1650
EverCheck™ alert system
CycleSaver™ design
R-404A refrigerant (1900 g)
Heat Rejection:16100 BTU/hr
Ambient temperature range: 7 – 38°C
Water temperature range: 7 – 32°C
Water pressure: 70 – 779kpa
Voltage range: 198 – 254V
11.35 amps (20 Amp Max fuse)
4.52 kwh/100 lbs.@ 90/70
50Hz electrical, 220-240v/50/1 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Warranty: Contact factory for warranty information.
“-E”: 50Hz Electrical Model

Additional information

Weight	340 lbs
Dimensions	X X in
Warranty	\|Warranty: Contact factory for warranty information.\|\|
Electrical Specs:	50Hz electrical, 220-240v/50/1 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 11.35, Max Fuse/HACR Breaker: 20 A
Plumbing Specs:	1/2" FPT Inlet, Minimum 10 mm Nominal OD Copper Water Tubing or Equivalent, 19.05 mm FPT Outlet, Minimum 18 mm Nominal OD Hard Pipe or Equivalent
Utility Consumption:	4.52 kWh per 100 lbs @ 90/70, 34.9 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:	Ambient Temp Range: 7 - 38°C, Water Temp Range: 7 - 32°C, Water Pressure: 70 - 779kpa, Voltage Range: 198 - 254V, Heat Rejection: 16100 BTU/hr, Refrigerant Charge: R-404A, (4 lbs. 3 oz. / 1900 g)
