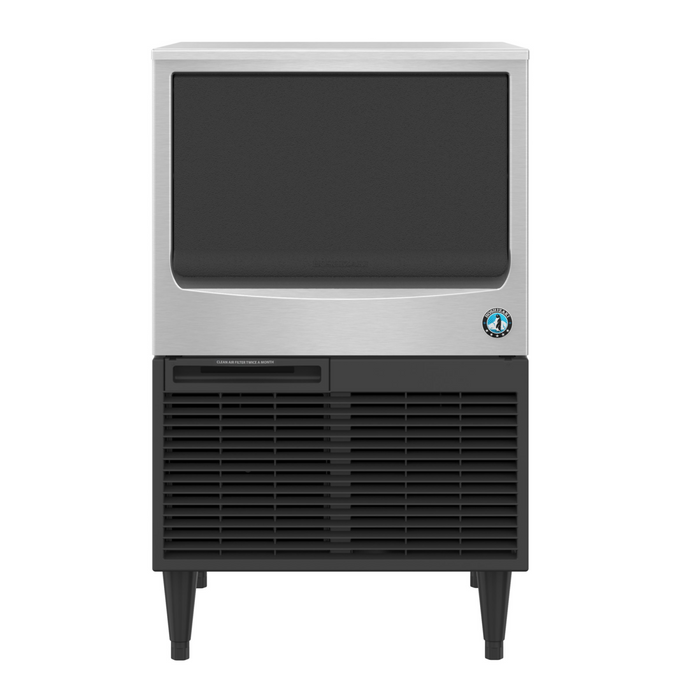

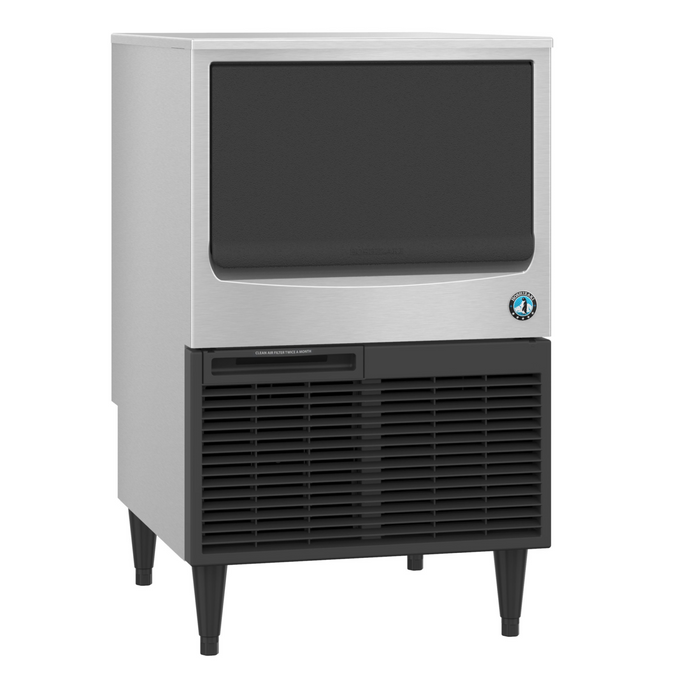

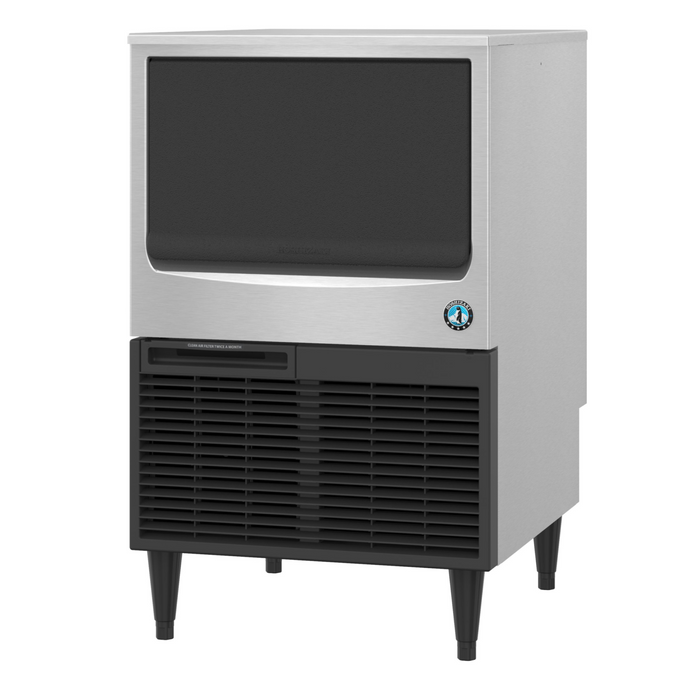

Hoshizaki KM-116BAJ Crescent Cuber Icemaker with built-in storage bin, air-cooled system.

Hoshizaki KM-116BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin

Name: Hoshizaki KM-116BAJ, Crescent Cuber Icemaker, Air-cooled, Built in Storage Bin
Brand: Hoshizaki
SKU: KM-116BAJ
Price: 3140.5 USD
Availability: InStock

by Hoshizaki

Save 45%

$5,710.00

$5,710.00 - $5,710.00

$5,710.00

$3,140.50

$3,140.50 - $3,140.50

$3,140.50

Quantity

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

The KM-116BAJ is capable of producing approximately 125 lbs of crescent cubed ice. This Undercounter Air-cooled, Built in Storage Bin icemaker stores up to 53 lbs of ice*, which makes it ideal for small bars, hotel lobbies, and office break rooms. It features the CycleSaver™ design and includes the EverCheck™ alert system making the unit simple to maintain. The KM-116BAJ requires a Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug electrical connection. Front in, front out airflow. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice. KMD-11611BAJ.

Specifications

Dimensions: 23-3/4″ W x 24″ D x 39″ H
Up to 125 lbs of ice produced per 24 hours
Up to 53 lbs of built-in storage capacity (1.8ft3)
Produces crescent shaped ice cubes
Slide in door with durable stainless steel exterior
Front in, front out airflow
EverCheck™ alert system
CycleSaver™ design
HS-5061 drain pump assembly, sold separately
R-134a refrigerant (7.8 oz. / 221 g)
Heat Rejection:2100 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
5.5 amps (15 Amp Max fuse)
8.1 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug
ENERGY STAR® qualified
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts & Labor warranty on evaporator.

Additional information

Weight	145 lbs
Dimensions	X X in
Warranty	\|Three Years: Parts & Labor warranty on entire machine.\|\|Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Electrical Specs:	Single phase, 115v/60/1, 6.5 ft cord with NEMA 5-15 plug, Amperage: 5.5, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:	1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption:	8.1 kWh per 100 lbs @ 90/70, 20 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:	Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 2100 BTU/hr, Refrigerant Charge: R-134a, (7.8 oz. / 221 g)
