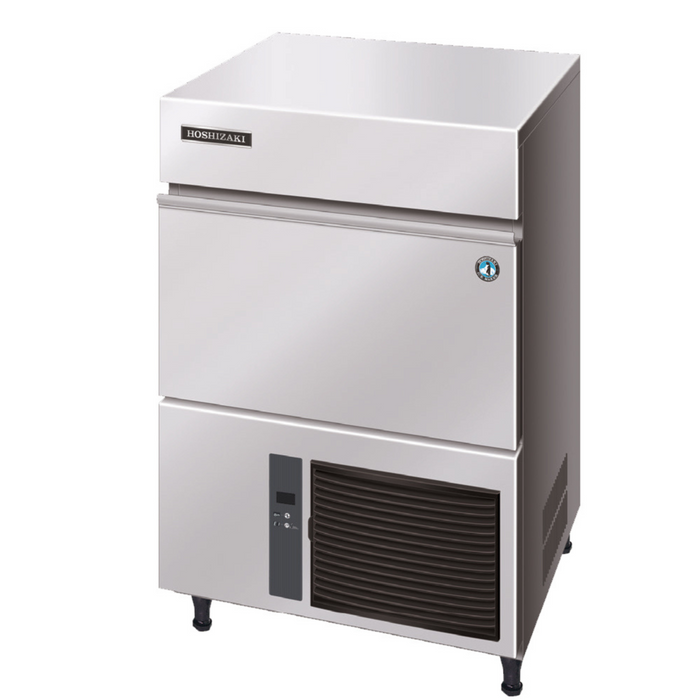

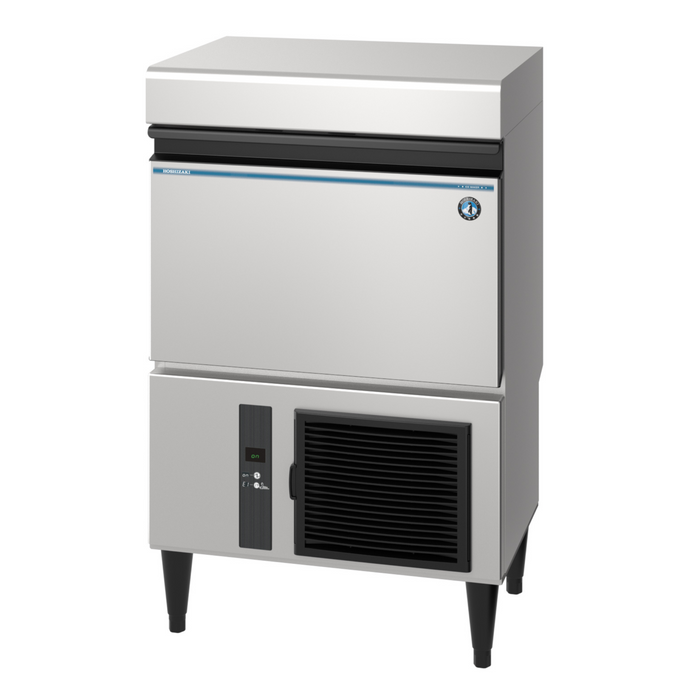

Hoshizaki IM-50BAA-Q Sphere Cube Icemaker with built-in storage bin and stainless steel exterior.

Hoshizaki IM-50BAA-Q, Sphere Cube Icemaker, Air-cooled, Built in Storage Bin

Name: Hoshizaki IM-50BAA-Q, Sphere Cube Icemaker, Air-cooled, Built in Storage Bin
Brand: Hoshizaki
SKU: IM-50BAA-Q
Price: 6858.5 USD
Availability: InStock

by Hoshizaki

Save 45%

$12,470.00

$12,470.00 - $12,470.00

$12,470.00

$6,858.50

$6,858.50 - $6,858.50

$6,858.50

Quantity

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

The IM-50BAA-Q is capable of producing approximately 50 lbs of individual sphere cubes. The sphere cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Built in Storage Bin icemaker features Up to 36 lbs of built-in storage capacity (ft3)*. The IM-50BAA-Q is a Single phase, 115v/60/1, 6.5 ft. cord with NEMA 5-15 plug and uses R-134a refrigerant (7.1 oz. / 201 g). Nozzle injects water into the sphere ice forming chamber of the evaporator, making 15 spheres at a time. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice. IMD-50B50BAAPFAS Warning: This product contains PTFE and Propane, 1,1,1,2,2,3,3-heptafluoro-3-[(1,2,2-trifluoroethenyl)oxy]-, polymer with 1,1,2,2-tetrafluoroethene.

Specifications

Dimensions: 24-3/4″ W x 20-3/4″ D x 39- 1/2 ” H
Up to 50 lbs or 500 spheres of ice produced per 24 hours
Up to 36 lbs of built-in storage capacity (ft3)
Produces individual sphere cubes
Durable stainless steel exterior
Front in, back out airflow
Ice scoop included
Foam injected polyurethane for insulation (HFC free)
Nozzle injects water into the sphere ice forming chamber of the evaporator, making 15 spheres at a time
R-134a refrigerant (7.1 oz. / 201 g)
Heat Rejection:1500 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 7 – 113psig
Voltage range: 104 – 127V
5 amps (15 Amp Max fuse)
15.7 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 6.5 ft. cord with NEMA 5-15 plug
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts warranty on Compressor, air-cooled condenser coil.

Additional information

Weight	lbs
Dimensions	X X in
Warranty	\|Three Years: Parts & Labor warranty on entire machine.\|\|
Electrical Specs:	Single phase, 115v/60/1, 6.5 ft. cord with NEMA 5-15 plug, Amperage: 5, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:	1/2" FPT Inlet, Minimum 1/2" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption:	15.7 kWh per 100 lbs @ 90/70, 69 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:	Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 7 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 1500 BTU/hr, Refrigerant Charge: R-134a, (7.1 oz. / 201 g)
