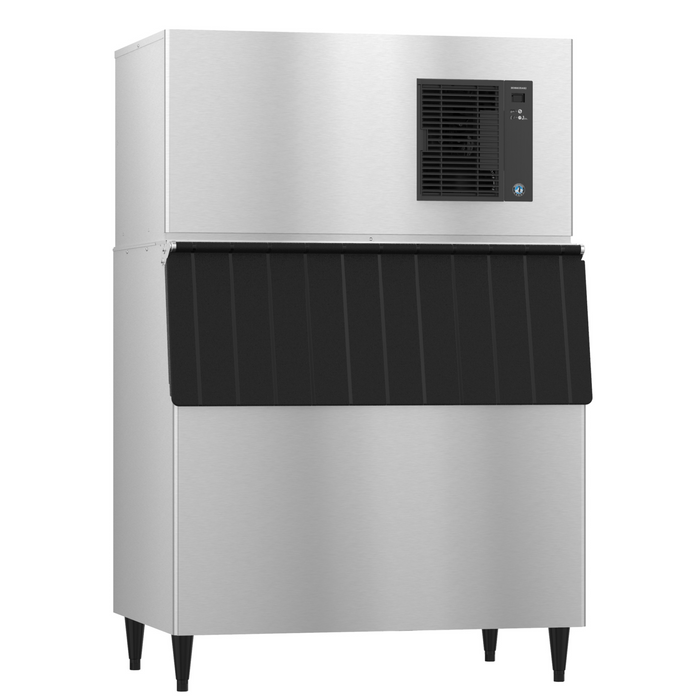

Hoshizaki IM-500SAB air-cooled square cuber icemaker with stainless steel exterior.

Hoshizaki IM-500SAB, Square Cuber Icemaker, Air-cooled

Name: Hoshizaki IM-500SAB, Square Cuber Icemaker, Air-cooled
Brand: Hoshizaki
SKU: IM-500SAB
Price: 6440.5 USD
Availability: InStock

by Hoshizaki

Save 45%

$11,710.00

$11,710.00 - $11,710.00

$11,710.00

$6,440.50

$6,440.50 - $6,440.50

$6,440.50

Quantity

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

The IM-500SAB is capable of producing approximately 489 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Stackable icemaker features the EverCheck™ digital control system with LED display detects potential problems and notifies the operator before excessive maintenance or repair. The IM-500SAB requires a Single phase, 115v/60/1, Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details. PFAS Warning: This product contains PTFE and Propane, 1,1,1,2,2,3,3-heptafluoro-3-[(1,2,2-trifluoroethenyl)oxy]-, polymer with 1,1,2,2-tetrafluoroethene.

Specifications

Dimensions: 44″ W x 27-5/8″ D x 21-3/4″ H
Up to 489 lbs of ice produced per 24 hours

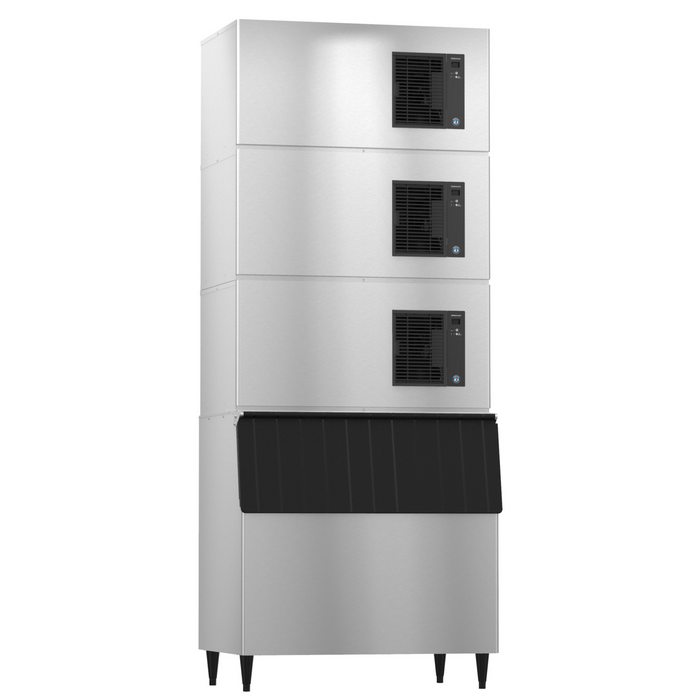

Stack 3 units for 3x the ice production
Produces individual square cubes
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
EverCheck™ digital control system with LED display
Clean individual square ice cubes
Panels easily removed and all components accessible for service
R-404A refrigerant (1 lbs. 10.5 oz. / 751.3 g)
Heat Rejection:4500 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
11.5 amps (20 Amp Max fuse)
5.8 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts warranty on Compressor, air-cooled condenser coil.

Additional information

Weight	230 lbs
Dimensions	X X in
Warranty	\|Three Years: Parts & Labor warranty on entire machine.\|\|
Electrical Specs:	Single phase, 115v/60/1, Must be hardwired at site, no cord/plug included, Amperage: 11.5, Max Fuse/HACR Breaker: 20 A
Plumbing Specs:	1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption:	5.8 kWh per 100 lbs @ 90/70, 23 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:	Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 4500 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 10.5 oz. / 751.3 g)
