Hoshizaki IM-200BAC square cuber icemaker with built-in storage bin, air-cooled.

Hoshizaki IM-200BAC, Square Cuber Icemaker, Air-cooled, Built in Storage Bin

Name: Hoshizaki IM-200BAC, Square Cuber Icemaker, Air-cooled, Built in Storage Bin
Brand: Hoshizaki
SKU: IM-200BAC
Price: 5093.0 USD
Availability: InStock

by Hoshizaki

Save 45%

$9,260.00

$9,260.00 - $9,260.00

$9,260.00

$5,093.00

$5,093.00 - $5,093.00

$5,093.00

Quantity

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

The IM-200BAC is capable of producing approximately 188 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Built in Storage Bin icemaker features Up to 75 lbs of built-in storage capacity (2.5ft3)*. The IM-200BAC is a Single phase, 115v/60/1, 5′ 7/8″ ft cord with NEMA 5-15 plug and uses R-404A refrigerant (10.6 oz. / 301 g). Min Clearance: 0″ on top, 2″ on rear & left side, 6″ on right side. Or 2″ at top and rear, 5/8″ on left side, 6″ on right side.. Please consult the Specification Sheet for additional details.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice. IMD-20020BAC. PFAS Warning: This product contains PTFE and Propane, 1,1,1,2,2,3,3-heptafluoro-3-[(1,2,2-trifluoroethenyl)oxy]-, polymer with 1,1,2,2-tetrafluoroethene.

Specifications

Dimensions: 39-1/2″ W x 23-5/8″ D x 33- 1/2 ” H
Up to 188 lbs of ice produced per 24 hours
Up to 75 lbs of built-in storage capacity (2.5ft3)

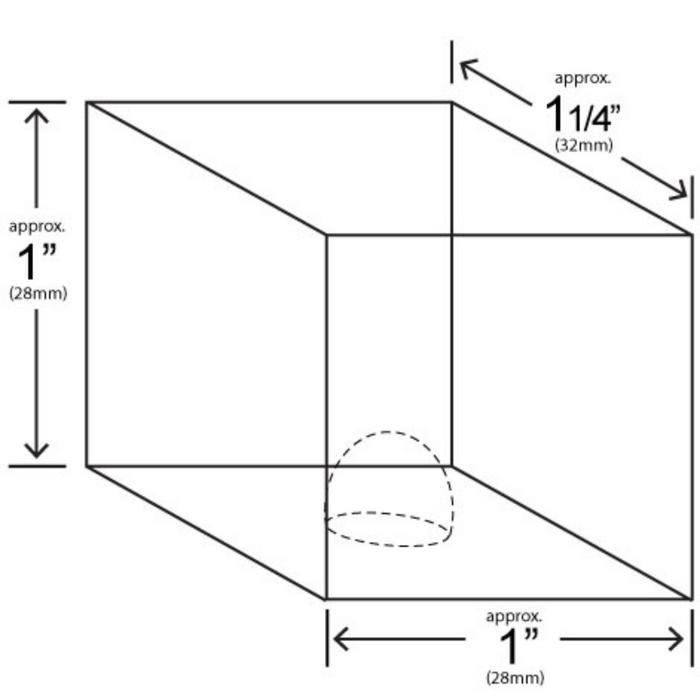

Produces individual square cubes
Durable stainless steel exterior
Front in, front out airflow
EverCheck™ alert system
Each cube is made individually by a dedicated jet spray
Min Clearance: 0″ on top, 2″ on rear & left side, 6″ on right side. Or 2″ at top and rear, 5/8″ on left side, 6″ on right side.
R-404A refrigerant (10.6 oz. / 301 g)
Heat Rejection:3420 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
7.6 amps (15 Amp Max fuse)
8.4 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 5′ 7/8″ ft cord with NEMA 5-15 plug
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts warranty on Compressor, air-cooled condenser coil.

Additional information

Weight	45.5 lbs
Dimensions	X X in
Warranty	\|Three Years: Parts & Labor warranty on entire machine.\|\|
Electrical Specs:	Single phase, 115v/60/1, 5' 7/8" ft cord with NEMA 5-15 plug, Amperage: 7.6, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:	1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption:	8.4 kWh per 100 lbs @ 90/70, 22.5 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:	Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 3420 BTU/hr, Refrigerant Charge: R-404A, (10.6 oz. / 301 g)
