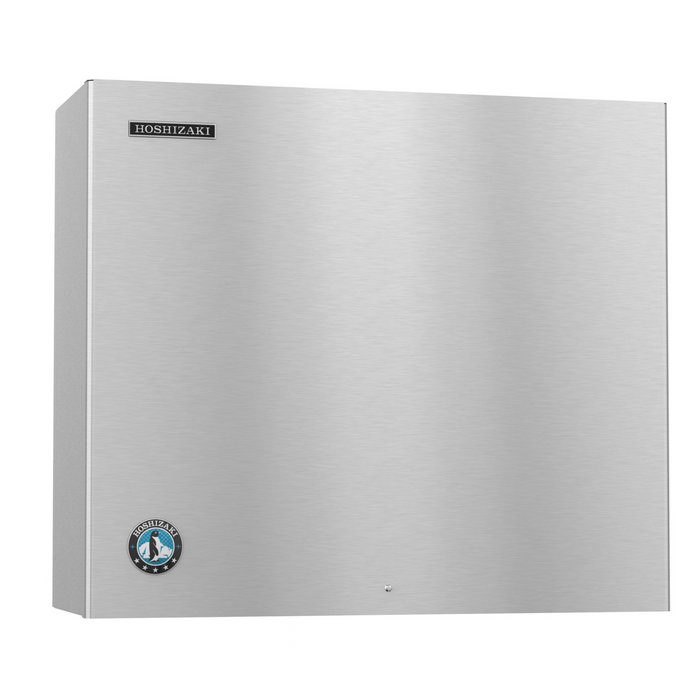

Hoshizaki FS-1001MLJ-C Serenity Series Remote-cooled Cubelet Icemaker, stainless steel exterior.

Hoshizaki FS-1001MLJ-C with SRC-10J, Cubelet Icemaker, Remote-cooled, Serenity Series

by Hoshizaki
Save 45% Save 45%
$14,230.00
$14,230.00 - $14,230.00
$14,230.00
$7,826.50
$7,826.50 - $7,826.50
$7,826.50

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Contact Us

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

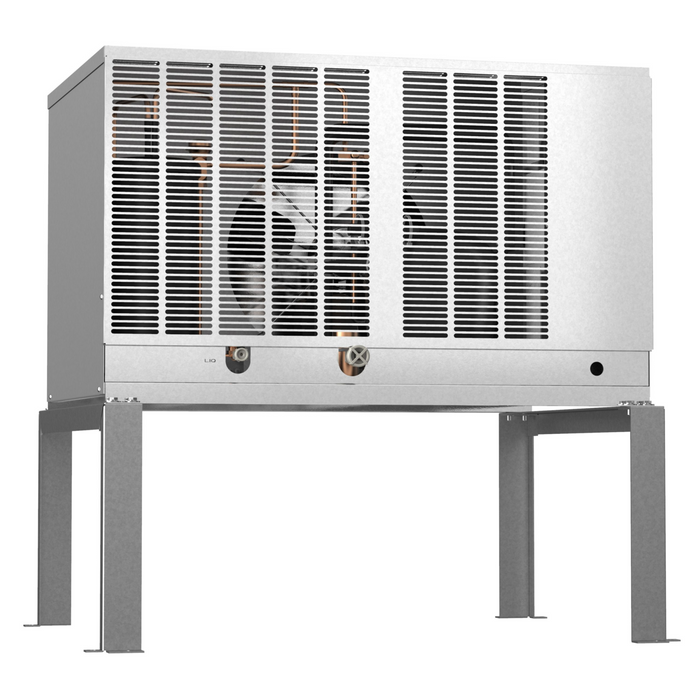

The FS-1001MLJ-C is capable of producing approximately 851 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Remote-cooled with SRC-10J icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The FS-1001MLJ-C requires a Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: Beverage Dispensers. Please consult the Specification Sheet for additional details.

Specifications

  • Dimensions: 30″ W x 11″ D x 26″ H
  • Up to 851 lbs of ice produced per 24 hours
  • Mount units side-by-side for x the ice production

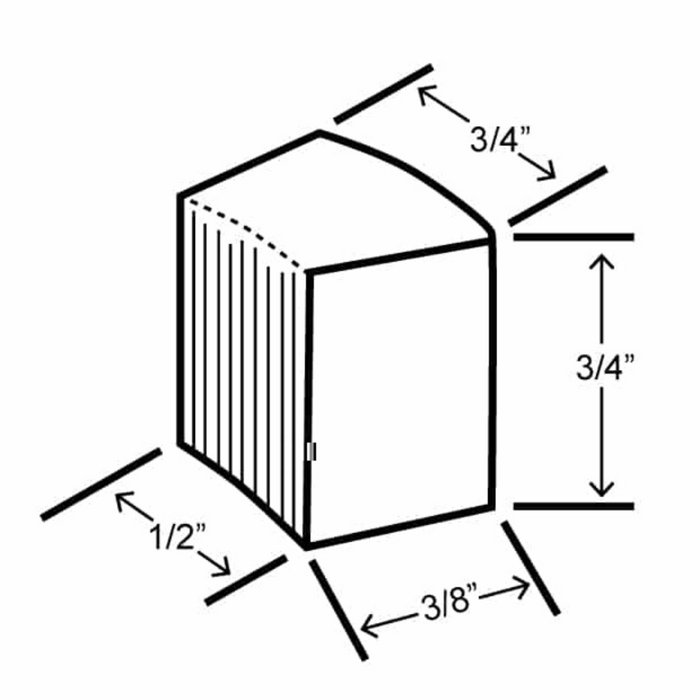

  • Produces small cubelet nugget-style ice
  • Durable stainless steel exterior

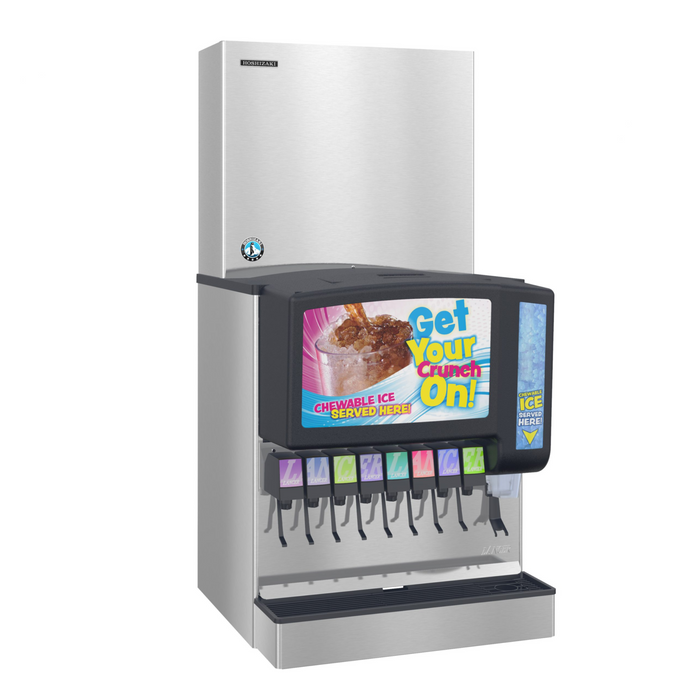

  • Compatible bins & dispensers, sold separately: Beverage Dispensers
  • Ice removed from evaporator after every shut down cycle
  • Advanced CleanCycle24™ design
  • Remote cooled models reduces heat in the kitchen and minimizes noise
  • R-404A refrigerant (3.5 oz. / 99 g)
  • Heat Rejection:9800 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 9.3 amps (20 Amp Max fuse)
  • 5.07 kwh/100 lbs.@ 90/70
  • Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine.
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.

Additional information

Weight 140 lbs
Dimensions X X in
Warranty |Three Years: Parts & Labor warranty on entire machine.||
Electrical Specs: Single phase, See Remote Condenser, *115V supply for the FS Icemaker is supplied from the 230V SRC Remote Condenser, Amperage: 9.3, Max Fuse/HACR Breaker: 20 A
Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption: 5.07 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 9800 BTU/hr, Refrigerant Charge: R-404A, (3.5 oz. / 99 g)

Service Literature

Specification Sheet

Instruction Manual

Parts Manual

Service Manual

CAD/Revit Files

Warranty Statement

Sales Catalog

Video
