Hoshizaki F-801MAJ-C, Cubelet Icemaker, Air-cooled

Name: Hoshizaki F-801MAJ-C, Cubelet Icemaker, Air-cooled
Brand: Hoshizaki
SKU: F-801MAJ-C
Price: 7502.0 USD
Availability: InStock

by Hoshizaki

Save 45%

$13,640.00

$13,640.00 - $13,640.00

$13,640.00

$7,502.00

$7,502.00 - $7,502.00

$7,502.00

Quantity

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

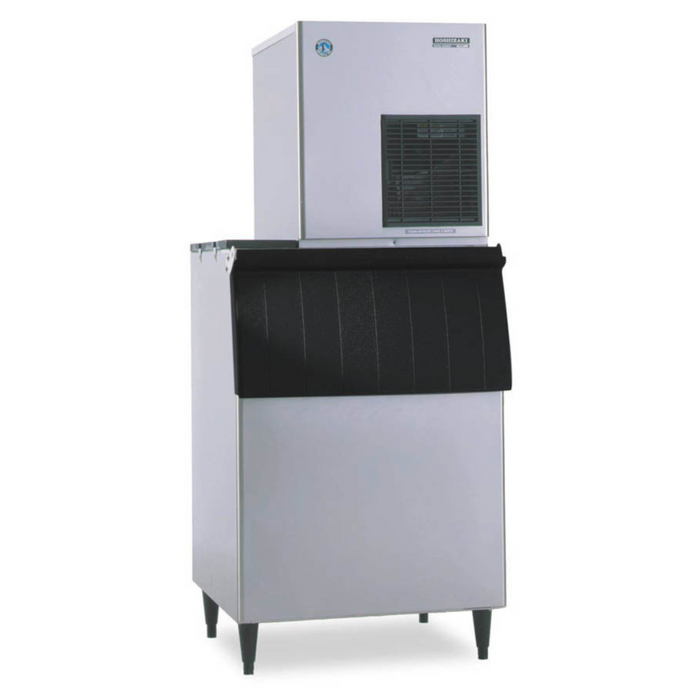

The F-801MAJ-C is capable of producing approximately 632 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Slim Line Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-801MAJ-C requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.

Specifications

Dimensions: 22″ W x 27-3/8″ D x 26″ H
Up to 632 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production

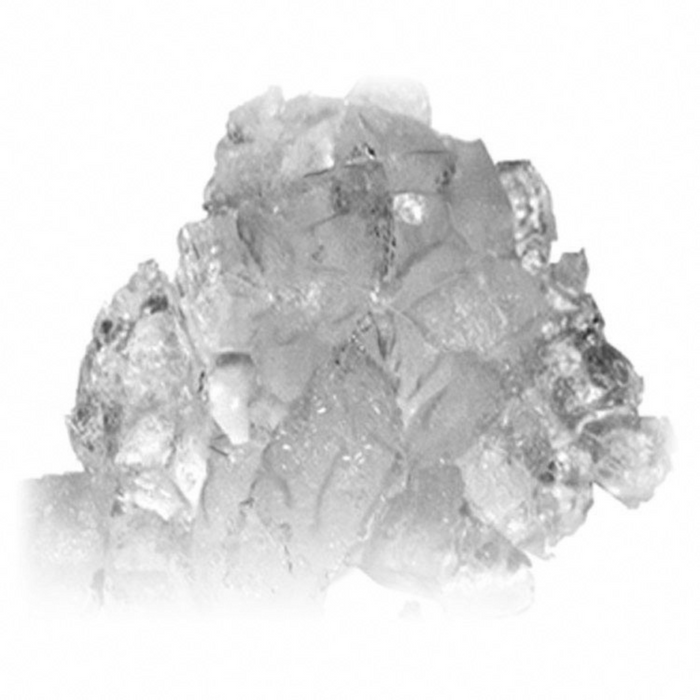

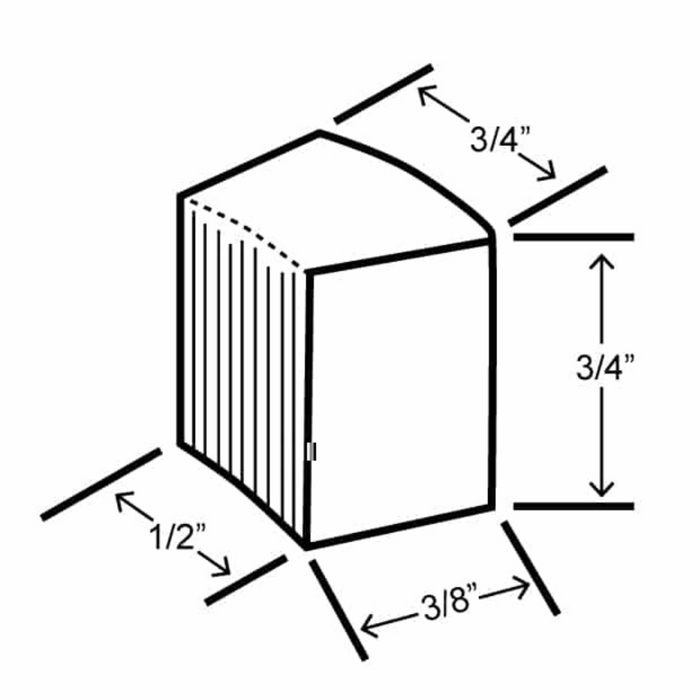

Produces small cubelet nugget-style ice
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650
2 second rinse every hour to remove sediment for cleaner ice
Advanced CleanCycle24™ design
Infrared bin control for easy cleaning and reliability
R-404A refrigerant (1 lbs. 12 oz. / 790 g)
Heat Rejection: BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
11.8 amps (15 Amp Max fuse)
5 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
ENERGY STAR® qualified
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts warranty on Compressor, air-cooled condenser coil.

Additional information

Weight	200 lbs
Dimensions	X X in
Warranty	\|Three Years: Parts & Labor warranty on entire machine.\|\|
Electrical Specs:	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 11.8, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:	1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption:	5 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:	Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 12 oz. / 790 g)
