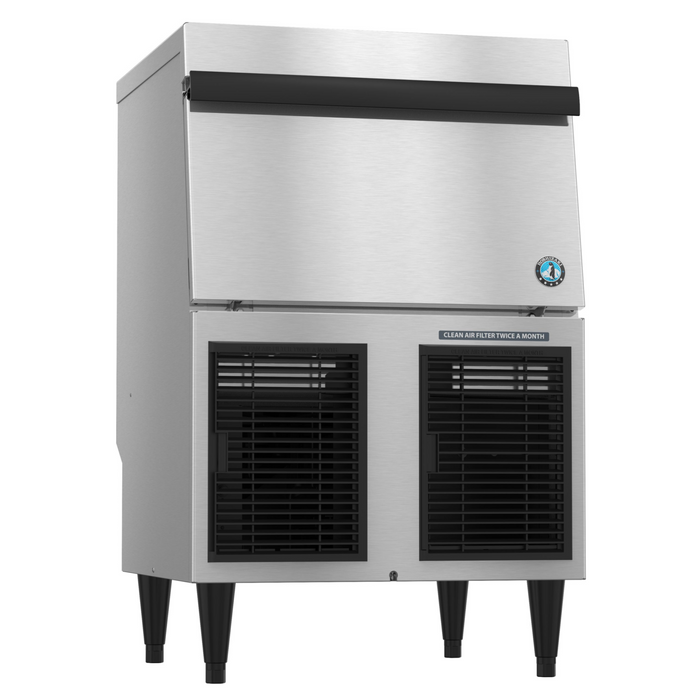

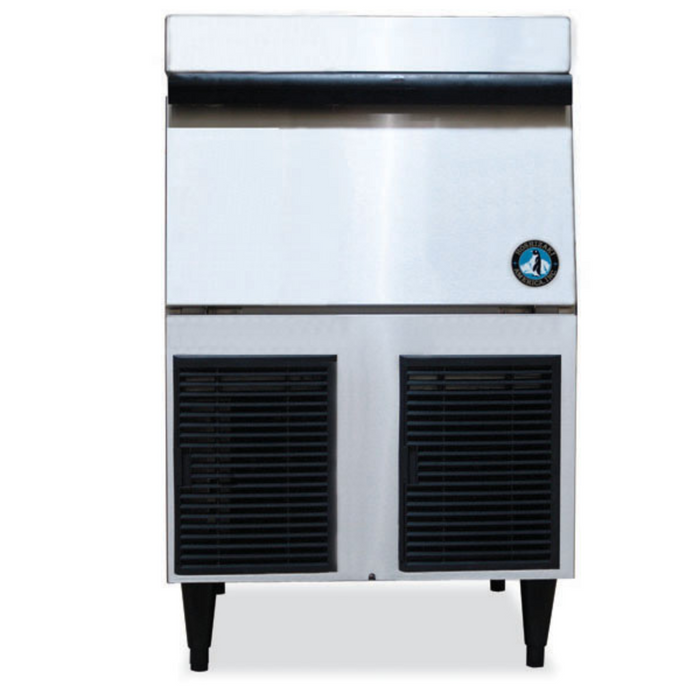

Hoshizaki F-330BAJ flaker icemaker with air-cooled system and built-in storage bin.

Hoshizaki F-330BAJ, Flaker Icemaker, Air-cooled, Built in Storage Bin

Name: Hoshizaki F-330BAJ, Flaker Icemaker, Air-cooled, Built in Storage Bin
Brand: Hoshizaki
SKU: F-330BAJ
Price: 6176.5 USD
Availability: InStock

by Hoshizaki

Save 45%

$11,230.00

$11,230.00 - $11,230.00

$11,230.00

$6,176.50

$6,176.50 - $6,176.50

$6,176.50

Quantity

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

The F-330BAJ is capable of producing approximately 332 lbs of flaked ice per day. Flaked ice is perfect for salad bars, seafood counters, and other food displays that require long lasting sanitary ice. This Air-cooled, Self Contained, Built in Storage Bin icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-330BAJ requires a Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug electrical connection that is hard-wired at the installation site. Front in, front out airflow. Please consult the Specification Sheet for additional details.

Specifications

Dimensions: 24″ W x 26″ D x 39″ H
Up to 332 lbs of ice produced per 24 hours
Up to 80 lbs of built-in storage capacity (2.7ft3)

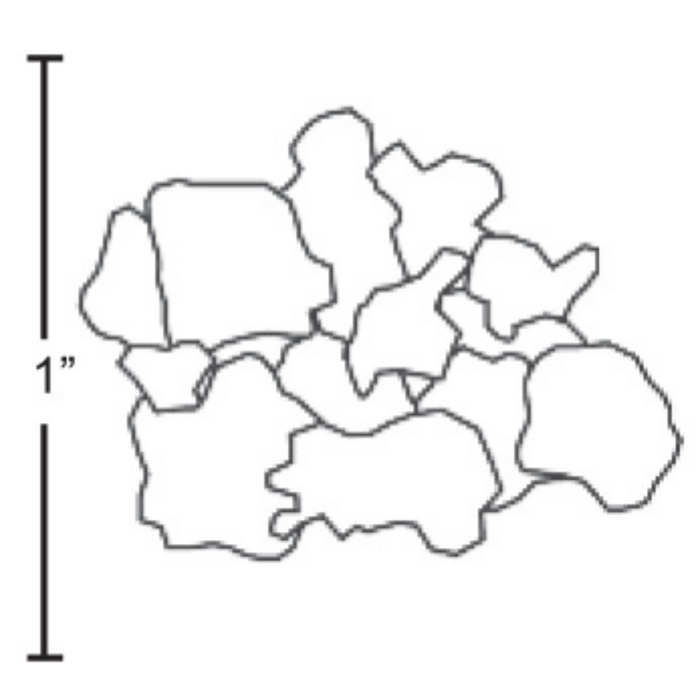

Produces flaked ice
Durable stainless steel exterior
Front in, front out airflow
2 second rinse every hour to remove sediment
Advanced CleanCycle24™ design
R-404A refrigerant (7.1 oz. / 200 g)
Heat Rejection:3400 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
6.9 amps (15 Amp Max fuse)
5.91 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts warranty on Compressor, air-cooled condenser coil.

Additional information

Weight	178 lbs
Dimensions	X X in
Warranty	\|Three Years: Parts & Labor warranty on entire machine.\|\|
Electrical Specs:	Single phase, 115v/60/1, 8 ft cord with NEMA 5-15 plug, Amperage: 6.9, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:	1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption:	5.91 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:	Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 3400 BTU/hr, Refrigerant Charge: R-404A, (7.1 oz. / 200 g)
