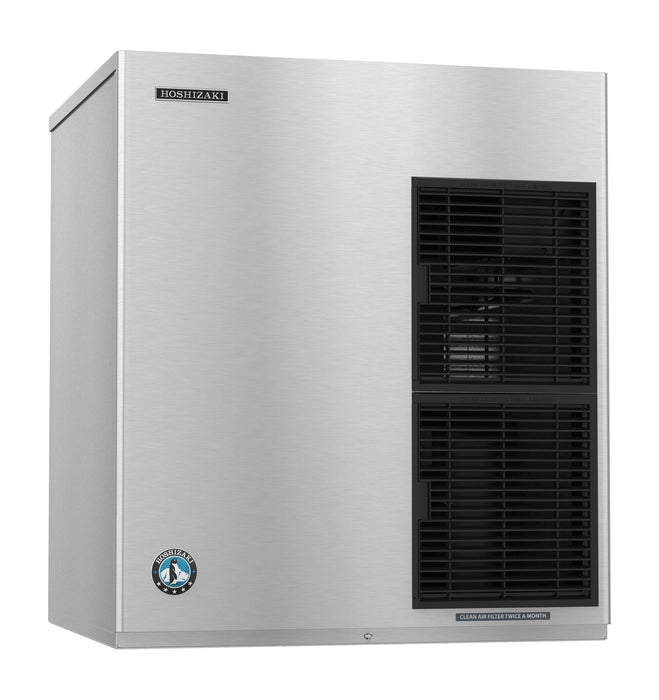

Hoshizaki F-1501MRJZ-C Cubelet Icemaker, Remote-cooled, stainless steel design.

Hoshizaki F-1501MRJZ-C with URC-14FZ, Cubelet Icemaker, Remote-cooled

by Hoshizaki
Save 45% Save 45%
$20,480.00
$20,480.00 - $20,480.00
$20,480.00
$11,264.00
$11,264.00 - $11,264.00
$11,264.00

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Contact Us

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

The F-1501MRJZ-C is capable of producing approximately 1353 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Remote-cooled with URC-14FZ icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1501MRJZ-C requires a Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Remote condenser sold separately. Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

Specifications

  • Dimensions: 30″ W x 27-3/8″ D x 34-5/8 ” H
  • Up to 1353 lbs of ice produced per 24 hours
  • Mount 2 units side-by-side for 2x the ice production
  • Produces medium cubelet nugget-style ice
  • Durable stainless steel exterior
  • Compatible bins & dispensers, sold separately: B-250, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1300, B-1500, B-1650
  • 2 second rinse every hour to remove sediment
  • Advanced CleanCycle24™ design
  • Infrared bin control for easy cleaning and reliability
  • R-404A refrigerant (5 lbs. 2.5 oz. / 2340 g)
  • Heat Rejection:13800 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 187 – 253V
  • 15.3 amps (20 Amp Max fuse)
  • 4.5 kwh/100 lbs.@ 90/70
  • Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.

Additional information

Weight 325 lbs
Dimensions X X in
Warranty |Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).||
Electrical Specs: Single phase, 208-230v/60/1, 4 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 15.3, Max Fuse/HACR Breaker: 20 A
Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption: 4.5 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 187 - 253V, Heat Rejection: 13800 BTU/hr, Refrigerant Charge: R-404A, (5 lbs. 2.5 oz. / 2340 g)

Service Literature

Specification Sheet

Instruction Manual

Parts Manual

CAD/Revit Files

Warranty Statement

Sales Catalog

Video
