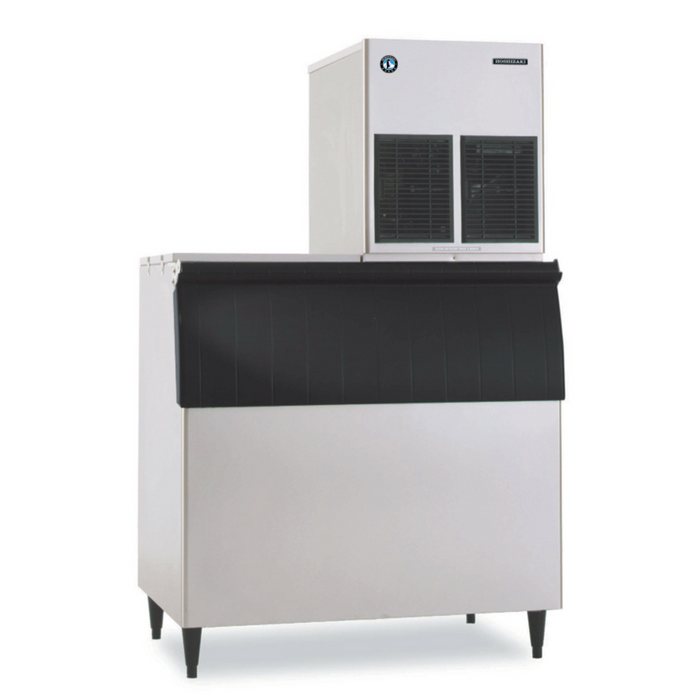

Hoshizaki F-1002MAJ-C, Cubelet Icemaker, Air-cooled

Name: Hoshizaki F-1002MAJ-C, Cubelet Icemaker, Air-cooled
Brand: Hoshizaki
SKU: F-1002MAJ-C
Price: 8690.0 USD
Availability: InStock

by Hoshizaki

Save 45%

$15,800.00

$15,800.00 - $15,800.00

$15,800.00

$8,690.00

$8,690.00 - $8,690.00

$8,690.00

Quantity

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

The F-1002MAJ-C is capable of producing approximately 890 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Slim Line Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-1002MAJ-C requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS. Please consult the Specification Sheet for additional details.

Specifications

Dimensions: 22″ W x 27-3/8″ D x 25-15/16″ H
Up to 890 lbs of ice produced per 24 hours
Mount 2 units side-by-side for 2x the ice production
Produces small cubelet nugget-style ice
Durable stainless steel exterior
Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500SS, B-1650SS, B-1150, B-1300, B-1500SS, B-1650SS
2 second rinse every hour to remove sediment
Advanced CleanCycle24™ design
R-404A refrigerant (2 lbs. 4 oz. / 1025 g)
Heat Rejection:8700 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 10 – 113psig
Voltage range: 104 – 127V
15.23 amps (20 Amp Max fuse)
4.57 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
Clean ice and easy maintenance lead to longer unit life span
Three Years: Parts & Labor warranty on entire machine.
Five Years: Parts warranty on Compressor, air-cooled condenser coil.

Additional information

Weight	205 lbs
Dimensions	X X in
Warranty	\|Three Years: Parts & Labor warranty on entire machine.\|\|
Electrical Specs:	Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included, Amperage: 15.23, Max Fuse/HACR Breaker: 20 A
Plumbing Specs:	1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Hard Pipe or Equivalent
Utility Consumption:	4.57 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:	Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 8700 BTU/hr, Refrigerant Charge: R-404A, (2 lbs. 4 oz. / 1025 g)
