Hoshizaki Dispensers DCM-752BAH-OS, Cubelet Icemaker, Air-cooled, Hands Free Dispenser, Built in Storage Bin

Save 45% Save 45%
Original price $23,560.00
Original price $23,560.00 - Original price $23,560.00
Original price $23,560.00
Current price $12,958.00
$12,958.00 - $12,958.00
Current price $12,958.00

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Contact Us

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

The DCM-752BAH-OS is capable of producing approximately 708 lbs of Cubelet nugget-style ice cubes per day, The built-in storage bin will hold up to 95 lbs of ice* at a time. This Air-cooled icemaker has an LED remote sensor for hands-free operation with opaque containers. This sanitary icemaker/dispenser features a user-friendly dispensing mechanism that allows easy to chew, cubelet ice to be dispensed with a simple push of a button. This model features Advanced CleanCycle24™ design – it performs a 2 second purge every hour to clean itself. The sanitary dispenser design keeps ice fully contained until it is needed, minimizing the opportunity for cross-contamination and keeping your ice clean. Keep your kitchen running smoothly with this Cubelet Ice and Water Dispenser. Stand not included.*Rated in accordance with AHRI Standard 820(I-P). Capacity based on 100% of total volume x 30 lb/ft3 average density of ice.

Specifications

  • Dimensions: 34-1/16″ W x 28-1/2″ D x 48-1/16″ H
  • Up to 708 lbs of ice produced per 24 hours
  • Up to 95 lbs of built-in storage capacity (3.2ft3)

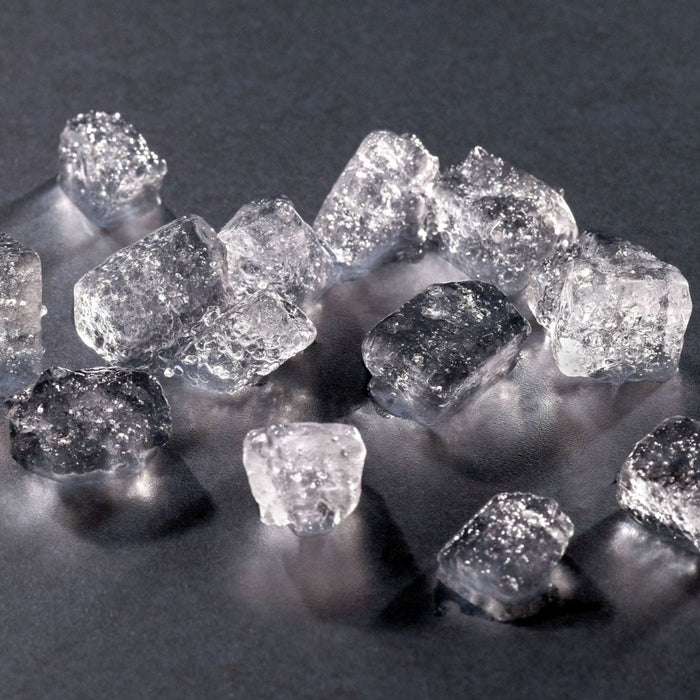

  • Produces small cubelet nugget-style ice
  • Durable stainless steel exterior
  • Place on countertop or optional stand: SD-700, SD-750
  • LED remote sensor for hands-free operation with opaque containers
  • Advanced CleanCycle24™ design – it performs a 2 second purge every hour to clean itself
  • R-404A refrigerant (1 lbs. 10 oz. / 737 g)
  • Heat Rejection:6900 BTU/hr
  • Ambient temperature range: 45 – 100°F
  • Water temperature range: 45 – 90°F
  • Water pressure: 10 – 113psig
  • Voltage range: 104 – 127V
  • 13 amps (20 Amp Max fuse)
  • 5.1 kwh/100 lbs.@ 90/70
  • Single phase, 115v/60/1
  • Clean ice and easy maintenance lead to longer unit life span
  • Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).
  • Five Years: Parts warranty on Compressor, air-cooled condenser coil.

Additional information

Weight lbs
Dimensions X X in
Warranty |Three Years: Parts & Labor warranty on entire machine. (Serial numbers VxxxxxJ and after).||
Electrical Specs: Single phase, 115v/60/1 , Amperage: 13, Max Fuse/HACR Breaker: 20 A
Plumbing Specs: 1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 3/4" FPT Outlet, Minimum 3/4" Nominal ID Drain Hard Pipe or Equivalent
Utility Consumption: 5.1 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits: Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 10 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 6900 BTU/hr, Refrigerant Charge: R-404A, (1 lbs. 10 oz. / 737 g)

Service Literature

Specification Sheet

Instruction Manual

Parts Manual

Service Manual

CAD/Revit Files

Warranty Statement

Sales Catalog

Video
