Hoshizaki C-80BAJ-DS custom cabinet ready air-cooled cubelet icemaker.

Hoshizaki C-80BAJ-DS, Cubelet Icemaker, Air-cooled, Custom Cabinet Ready

Name: Hoshizaki C-80BAJ-DS, Cubelet Icemaker, Air-cooled, Custom Cabinet Ready
Brand: Hoshizaki
SKU: C-80BAJ-DS
Price: 4647.5 USD
Availability: InStock

by Hoshizaki

Save 45%

$8,450.00

$8,450.00 - $8,450.00

$8,450.00

$4,647.50

$4,647.50 - $4,647.50

$4,647.50

Quantity

Delivery time

5-8 Business Days

Secure Checkout

Secure online checkout. We do not store customer payment data.

Business Hours: 9 AM - 5 PM CST

Phone: (409) 248-2480

Email: hi@globalmina.com

This compact undercounter Cubelet Icemaker is the perfect addition to any hotel suite, office breakroom, or kitchen. The C-80BAJ-DS is capable of producing approximately 80 lbs of Cubelet style ice cubes per day, and the built-in storage bin will hold up to 22 lbs* of ice at a time. The Undercounter design is less than 34″ tall. The Air-cooled design also features a Front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. UL approved for outdoor use. Drain pump not included. C-D-80BA80BBAJ.

Specifications

Dimensions: 14-7/8″ W x 22-5/8″ D x 33-1/2″ H
Up to 80 lbs of ice produced per 24 hours
Up to 22 lbs of built-in storage capacity (ft3)

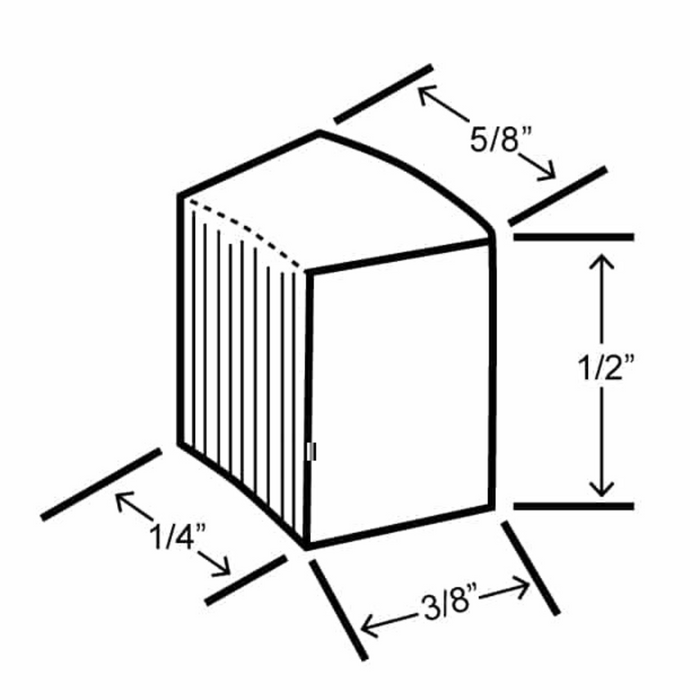

Produces mini cubelet nugget-style ice
Undercounter design is less than 34″ tall
Front in, front out airflow
UL approved for outdoor use
Swing style field reversable door
(-DS) Accommodates custom cabinet door (not included), DS door reversal kit (HS-0229)
R-134a refrigerant (3.92 oz. / 111 g)
Heat Rejection:1850 BTU/hr
Ambient temperature range: 45 – 100°F
Water temperature range: 45 – 90°F
Water pressure: 7 – 113psig
Voltage range: 104 – 127V
4 amps (15 Amp Max fuse)
17.3 kwh/100 lbs.@ 90/70
Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug
Clean ice and easy maintenance lead to longer unit life span
Two Years: Parts & Labor warranty on entire machine.
One Year: Parts & Labor warranty on optional HS-5061 Drain Pump Assembly.

Additional information

Weight	135 lbs
Dimensions	X X in
Warranty	\|Two Years: Parts & Labor warranty on entire machine.\|\|
Electrical Specs:	Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 plug, Amperage: 4, Max Fuse/HACR Breaker: 15 A
Plumbing Specs:	1/2" FPT Inlet, Minimum 1/4" Nominal ID Copper Water Tubing or Equivalent, 1/2" FPT Outlet, Minimum 1/2" Nominal ID Drain Hard Pipe or Equivalent
Utility Consumption:	17.3 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
Operating Limits:	Ambient Temp Range: 45 - 100°F, Water Temp Range: 45 - 90°F, Water Pressure: 7 - 113psig, Voltage Range: 104 - 127V, Heat Rejection: 1850 BTU/hr, Refrigerant Charge: R-134a, (3.92 oz. / 111 g)
